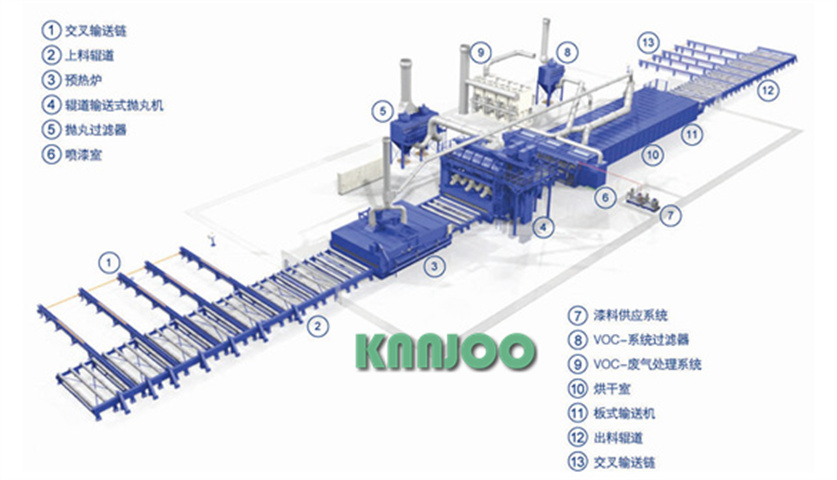

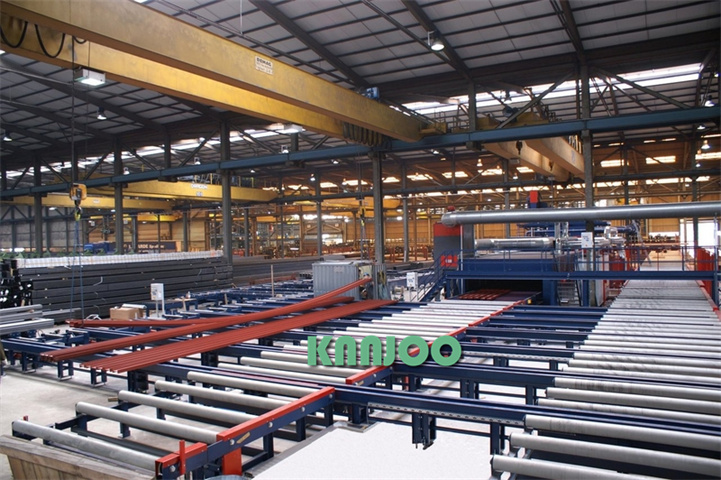

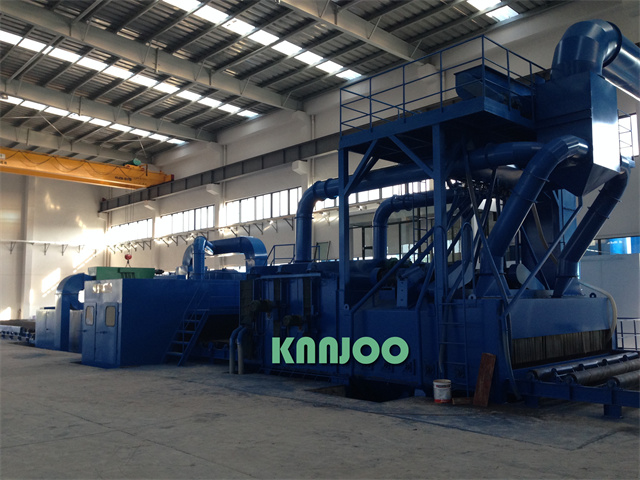

Rust on steel plates used in shipyards can compromise shipbuilding quality. Manual rust removal is impractical due to the immense workload involved; instead, mechanical rust removal is required to ensure quality standards. This need is effectively met by using a series of pass-through shot blasting machines—specifically, steel plate and profile pre-treatment lines. Many shipyards and steel mills, both domestically and internationally, have successfully implemented our shot blasting equipment and abrasive products. Notably, our Q69 series steel plate pre-treatment lines have been exported to clients in markets such as Australia.
· Surface rust removal and cleaning for military guided-missile destroyers
· Surface rust removal, cleaning, and coating for ships
· Surface rust removal and cleaning for ships via shot blasting and sandblasting
· Surface rust removal and cleaning for ships via shot blasting and sandblasting
Maritime Transport Industry
Industry Overview
The maritime transport industry encompasses activities involving the use of vessels as the primary means of transport, as well as the provision of related services. This includes deep-sea and coastal passenger and freight transport, auxiliary water transport activities, pipeline transport, cargo handling and stevedoring, and other transport-related services.
KEEJOO Solutions
1. KEEJOO provides surface cleaning and coating production lines for marine vessel components.
Solution for Continuous Shot Blasting Lines for Marine Transport Vessel Surfaces — From the Expert Team at KEEJOO
I. Shot blasting line solution recommended by KEEJOO:

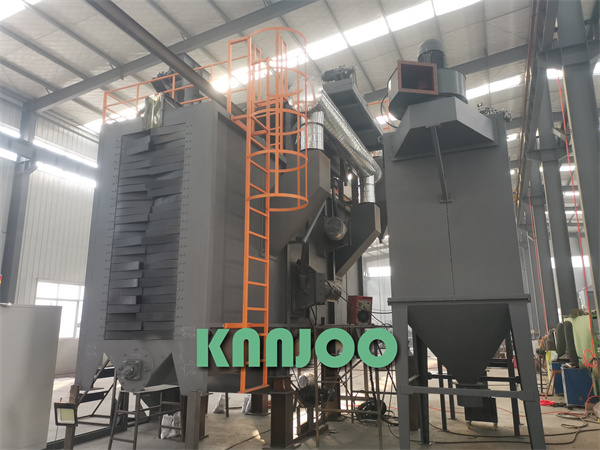

1. Overhead Rail Shot Blasting Machine
1. Model: XL10-27P11-16 (Model selected based on product dimensions).
2. Maximum part dimensions: Length: 2800mm, Width: 400mm, Height: 1000mm.
3. Maximum part weight: 2 tons.
4. Number of blast wheels: 16.
5. Blast wheel power: 11 kW/unit.
6. Blast wheel motor: ABB.
7. Semi-automatic flow control valves: 16 sets.
8. Operation mode: Fully automatic.
9. Machine inlet dimensions: Width: 1000mm, Height: 2800mm.
10. Conveying method: Automatic chain conveyor.
11. PLC: Siemens.
12. Touch screen: Siemens.

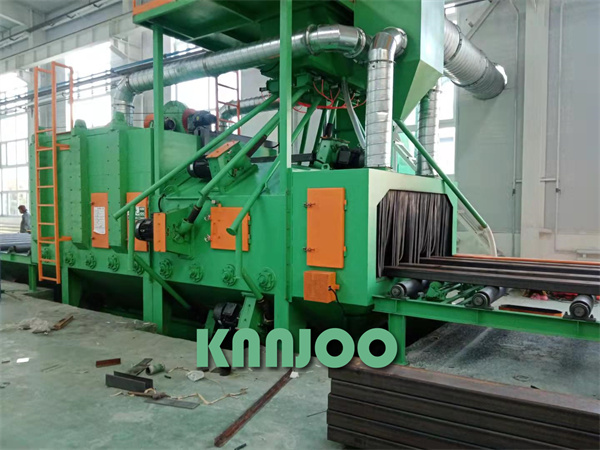

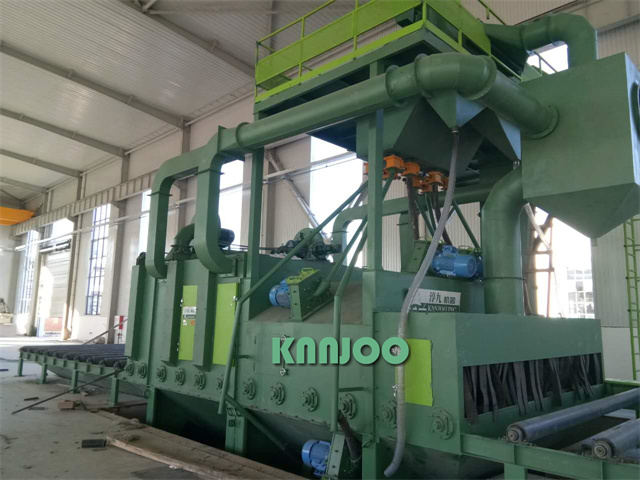

2. Roller Conveyor Type Shot Blasting Machine
1. Model: KJ2532Q11-12 (Model selected based on product dimensions).
2. Maximum workpiece dimensions: Diameter: 2500mm, Height: 3200mm.
3. Maximum workpiece weight: 10 tons.
4. Number of blast wheels: 12.
5. Blast wheel power: 11 kW per unit.
6. Blast wheel motor: Domestic make.
7. Semi-automatic flow control valves: 12 sets.
8. Operation mode: Fully automatic.
9. Conveying mechanism: Roller conveyor.
10. Roller conveyor speed control: Variable frequency drive (VFD).
11. PLC: Siemens.
12. Touch screen: Siemens.

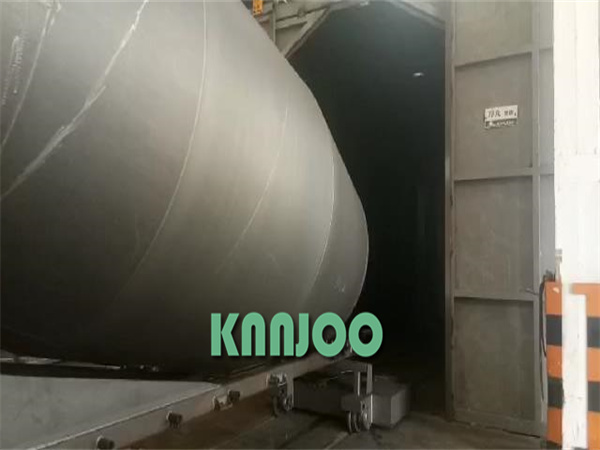

3. Fully Automatic Sandblasting Room
1. Model: PS905750-280L1-2E
2. Sandblasting room length: 9000 mm
3. Sandblasting room width: 5700 mm
4. Sandblasting room height: 5000 mm
5. Sandblasting room door width: 5700 mm
6. Sandblasting room door height: 4340 mm
7. Maximum entrance dimensions: 5500 × 4030 mm
8. Load capacity: 5 tons
9. Number of blast guns: 2 sets
10. Abrasive recovery method: Screw conveyor + automatic elevator
11. Transport method: Trolley feed
12. Equipped with MDC-12 cartridge pulse dust collector + cyclone separator
II. What product solutions can KEEJOO provide?
1. Marine Parts
1. Information to be provided by the customer:
2. Length of individual parts (provide both maximum and minimum lengths).
3. Width of individual parts (provide both maximum and minimum widths).
4. Thickness of parts.
5. Weight of individual parts (provide both maximum and minimum weights).
6. Material of parts.
7. Pre-treatment process applied to parts prior to shot blasting.
8. Requirements for surface cleanliness and roughness.
9. Production volume requirements (daily/monthly/annual output).
10. Requirements for the dust collector.
11. Dimensions (height and spatial layout) of the facility where the equipment will be installed.
12. Any other specific customer requirements.
2 Steel Products
1. Information to be provided by the customer.
2. Length of individual parts (provide both maximum and minimum lengths).
3. Width of individual parts (provide both maximum and minimum widths).
4. Part thickness.
5. Weight of individual parts (provide both maximum and minimum weights).
6. Part material.
7. Pre-treatment process applied to parts prior to shot blasting.
8. Requirements for surface cleanliness and roughness.
9. Production volume requirements (daily/monthly/annual output).
10. Requirements for the dust collector.
11. Dimensions of the facility (height and available space) where the equipment will be installed.
12. Any other customer requirements.
3. Marine Parts
1. Information to be provided by the customer.
2. Length of individual parts (provide both maximum and minimum lengths).
3. Width of individual parts (provide both maximum and minimum widths).
4. Part thickness.
5. Weight of individual parts (provide both maximum and minimum weights).
6. Part material.
7. Pre-treatment process applied to parts prior to shot blasting.
8. Requirements for surface cleanliness and roughness.
9. Production volume requirements (daily/monthly/annual output).
10. Requirements for the dust collector.
11. Dimensions of the facility (height and spatial layout) where the equipment will be installed.
12. Any other customer requirements.
