Application of KEEJOO Fully Automatic Sandblasting Rooms in the Shipbuilding Industry
Primary models purchased:
1. Fully automatic sandblasting room: KPS805060-300L2-2, purchase quantity: 1 unit;
Application Scope:
Used for surface derusting of marine components and sheet metal parts.
Key features of this machine:
1. Compact equipment layout with a small footprint;
2. The interior of the blast chamber is lined with 4mm rubber, providing both protection and excellent noise reduction; the chamber door features a double-layer lip seal design, ensuring low noise levels and superior sealing performance;
3. Controlled via an integrated manual push-button panel using Chint low-voltage electrical components; the system's various units are interlinked for safe and reliable operation;
4. Utilizes a 300L pressure-blast system to ensure consistent, uninterrupted abrasive flow during the blasting process;
5. Employs a screw conveyor and bucket elevator recovery system; spent abrasive falls down a slope into the screw conveyor and is automatically recovered;
6. Total installed power is only approximately 31.2 kW, offering superior energy efficiency;
7. Features secondary filtration technology, keeping dust emissions below 80 mg/m³;
8. Advanced noise-reduction design keeps noise levels below 85 dBA;
9. Equipped with eight independently controllable 600-lumen lights, facilitating clear observation of the blasting process.
Key Specifications:
1. Key specifications for the KPS8050 fully automatic sandblasting room
Sandblasting room dimensions (L×W×H): 8000 × 5000–6000 mm
Workpiece dimensions: Smaller than the sandblasting room dimensions
Maximum workpiece weight: 7000 kg
The configuration includes:
1 shot blasting chamber (including 8 dust-proof and explosion-proof LED lights), 1 set of 300L pressure blast system, 1 set of abrasive recovery system, 1 set of abrasive separation system, 1 set of dust collection system, 1 set of maintenance platform, 1 set of electrical control cabinet, 1 set of spare parts, 1 equipment manual, and 1 set of rail tracks.

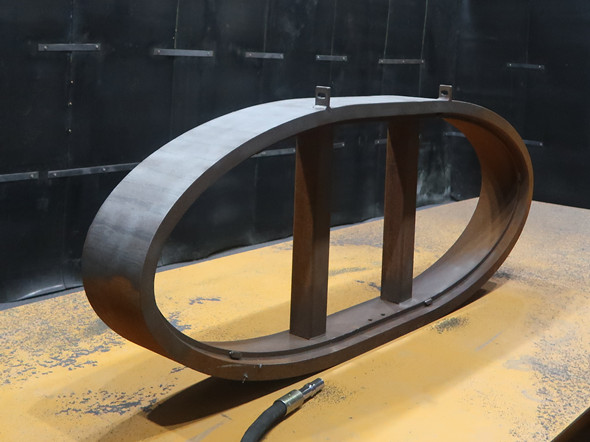

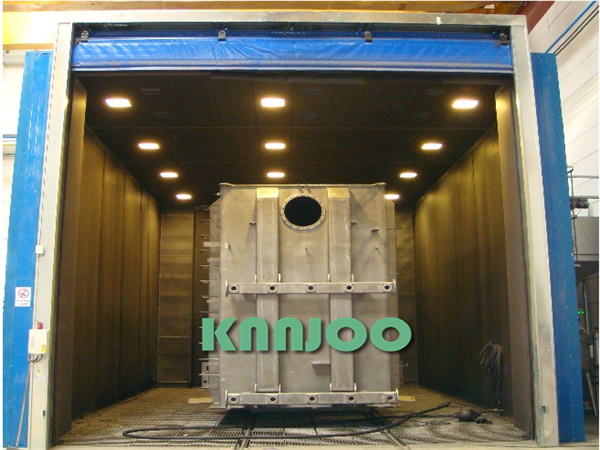

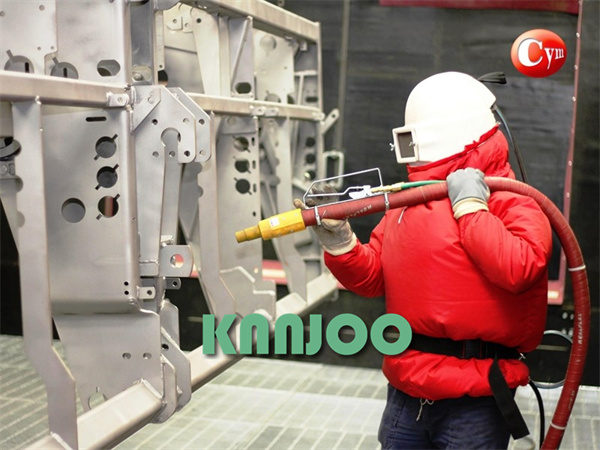

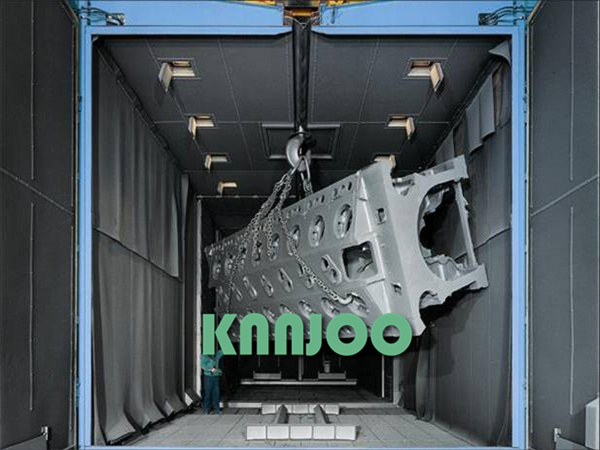

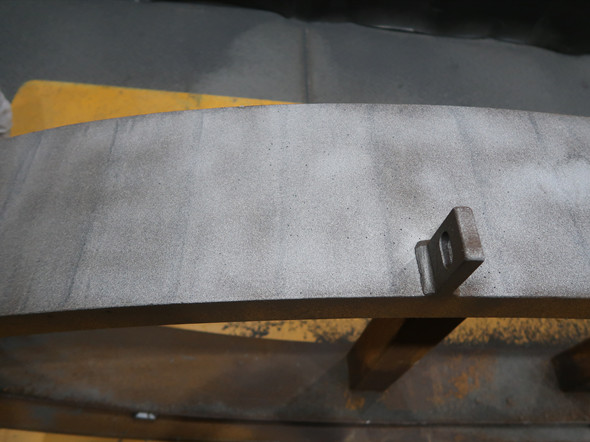

Images of parts processed in the sandblasting room
