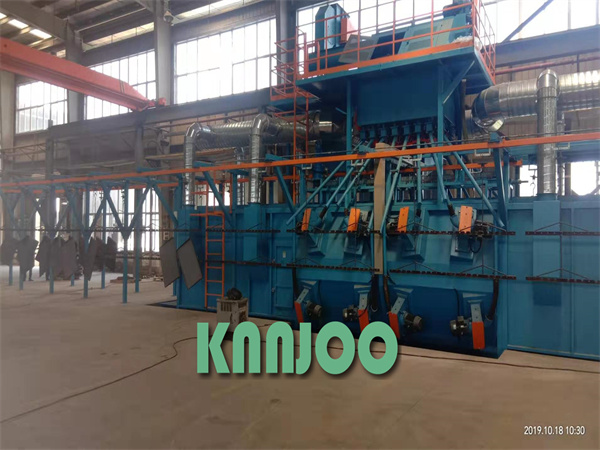

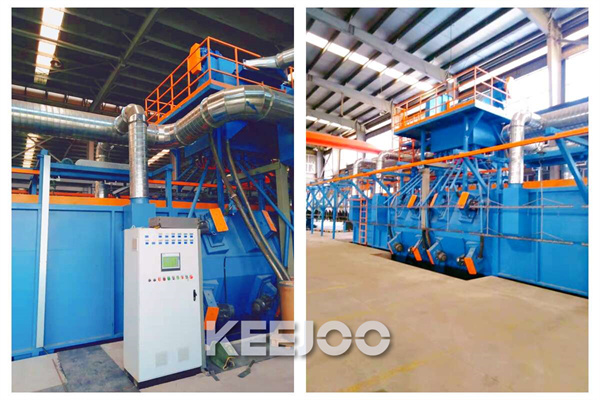

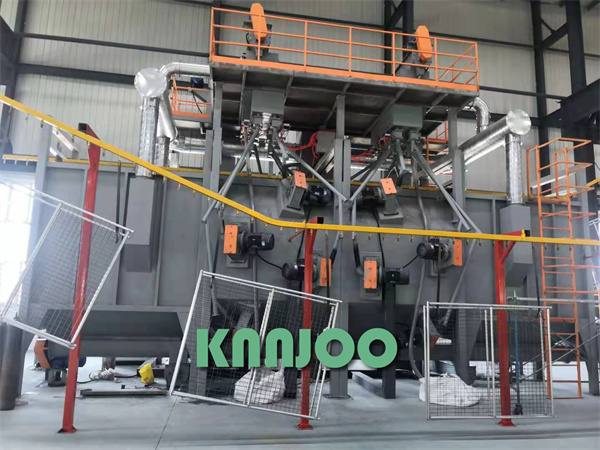

Product Overview

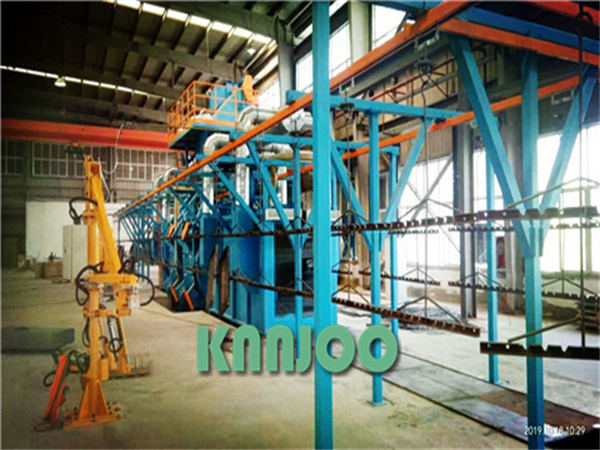

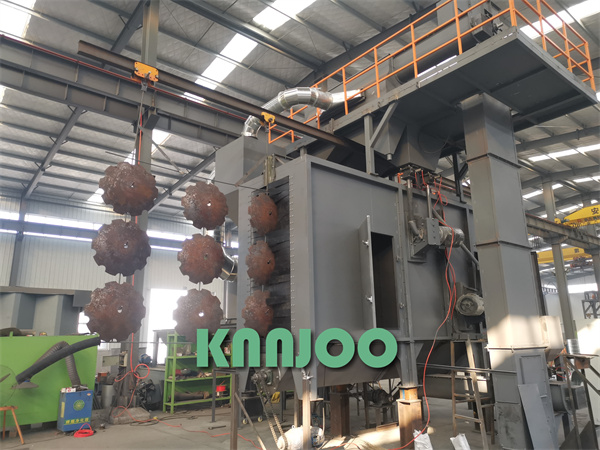

The Continuous Catenary Shot Blasting Machine utilizes a continuous, indexing, or advanced power-and-free pusher-type overhead conveyor system to transport workpieces. This design allows workpieces to remain stationary during loading/unloading and within the blasting zone, enabling precise, fixed-point processing. Depending on the specific workpiece, the system supports single-point loads ranging from 50 kg to 2,000 kg. Offering high productivity and reli
Technical Parameters (Step Intermittent Series)
| Item | HPS-2-15/1112-430 | HPS-2-15/1315-430 | HPS-3-22/1516-430 | HPS-3-22/1521-430 | HPS-4-22/1521-430 |
| Rotation Diameter Ø (mm) | 1100 | 1300 | 1500 | 1500 | 1500 |
| Hook height (mm) | 1250 | 1500 | 1600 | 2100 | 2100 |
| No. of blast wheel | 2 | 2 | 3 | 3 | 4 |
| Power per Blast Wheel (kW) | 15 (11) | 15 (11) | 22 (15) | 22 (15) | 22 (15)
|
Parameters & Configuration List (Chongqing Milixin Reference) |
| No. | Name | Continuous Catenary Shot Blasting Machine |
| 1 | Model | KJ3810/Q11-16 |
| 2 | Sorting Configuration | Air sorting |
| 3 | Application | Mass cleaning of small & medium workpieces |
| 4 | Blast wheel type | Machined CNC Parts / Cast Parts |
| 5 | No. of blast wheel | 16 sets |
| 6 | Motor Power of Blast Wheel | 11KW |
| 7 | Load Capacity (Excluding Tooling) | ≤2 T |
| 8 | Single Workpiece Dimension | ≤1000*400*2800mm |
| 9 | Max Inlet Dimension (W × H) | 1000*2000mm |
| 10 | Semi-auto Abrasive Flow Valve | 16sets |
| 11 | Auto Abrasive Flow Valve | Optional |
| 12 | Dry Dust Collector | 24 Filter Cartridges |
| 13 | Wet Dust Collector | Optional |
| 14 | Air Volume (m³/h) | ≤28000 |
| 15 | Bare Machine Size (L×W×H, mm) | 10580*5290*9124mm |
| 16 | Overall Dimension Including Dust Collector (L × W × H) | 15190*6356*9124mm |
| 17 | Total Power (Including Dust Collector) | ≤202.4KW+37KW |
| 18 | Total Weight (Bare Machine + Dust Collector) | 35 T+4.6 T |

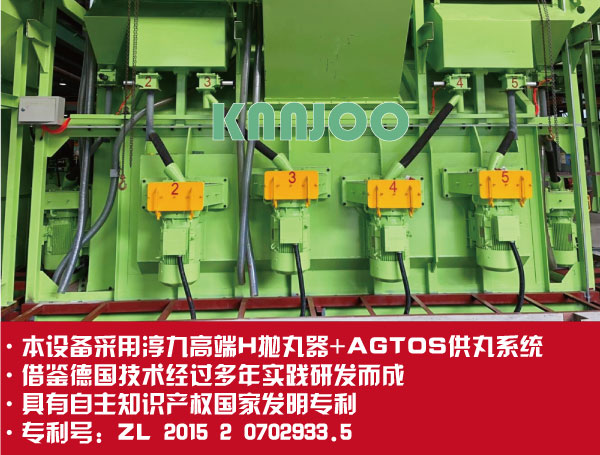

This machine is equipped with the HAI Ocean Surge® direct-coupled high-efficiency blast wheel (German design with independent patents, Patent No.: ).

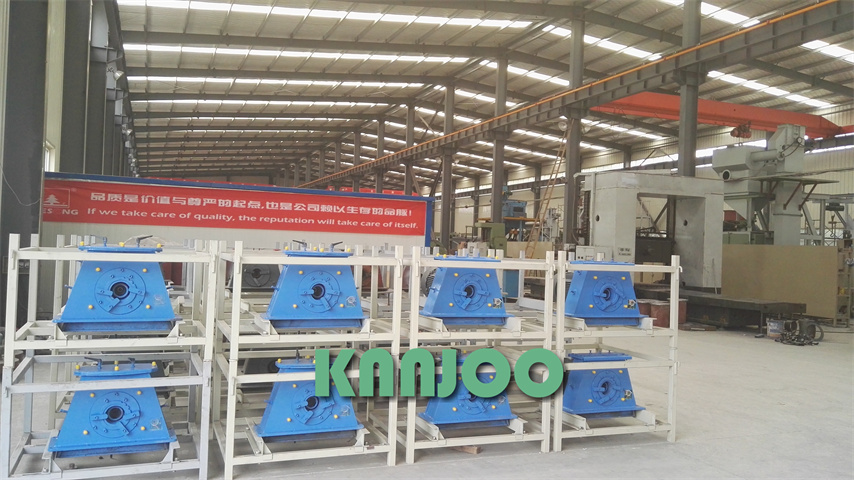

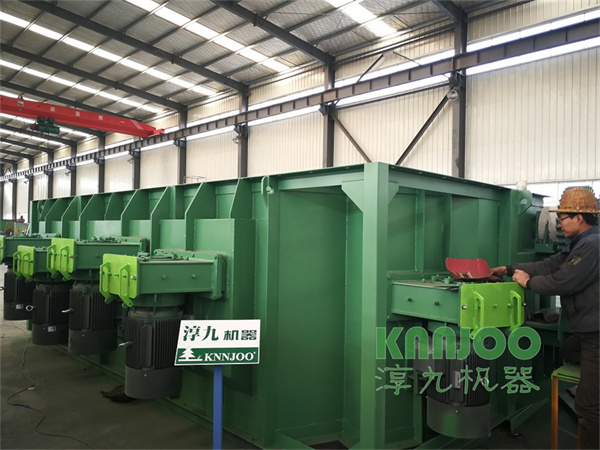

The blast wheel serves as the core of a shot blasting machine, and its design dictates the overall equipment performance. The HAI Ocean Surge® blast wheel comes as standard for this unit. The H-series blast wheels deliver superior blasting performance. Available in multiple sizes and material options, H blast wheels enable flexible application across diverse manufacturing processes.

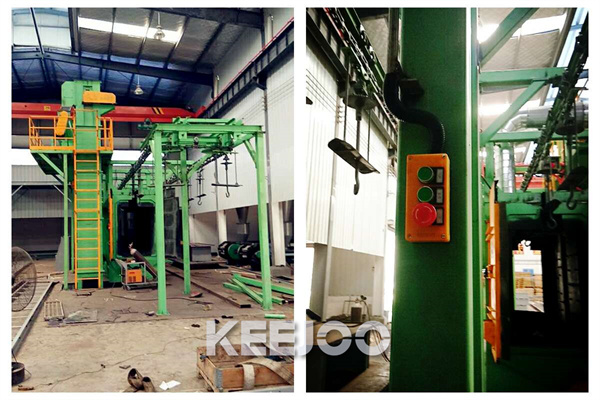

Selected Case Studies of KEEJOO Brand Shot Blasting Machines
Hook-type shot blasting machine manufactured for Cummins Engine Company
Hook and monorail conveyor shot blasting machine manufactured for Siemens
Hook through-type shot blasting machine for Doosan Heavy Industries
Hook-type shot blasting machine manufactured for Komatsu Shantui
Hook through-type shot blasting machine manufactured for Shandong Engineering Machinery Factory
Large-scale hook-type shot blasting machine for Caterpillar (USA)
Hook-type shot blasting machine for wind power fans, manufactured for Collett & Fil
Large-scale shot blasting machine dedicated to the nuclear power industry, manufactured for Shentong Valve
To date, we have successfully delivered over 1,000 sets of hook-type shot blasting machines both domestically and internationally, maintaining a clear industry-leading position.
......

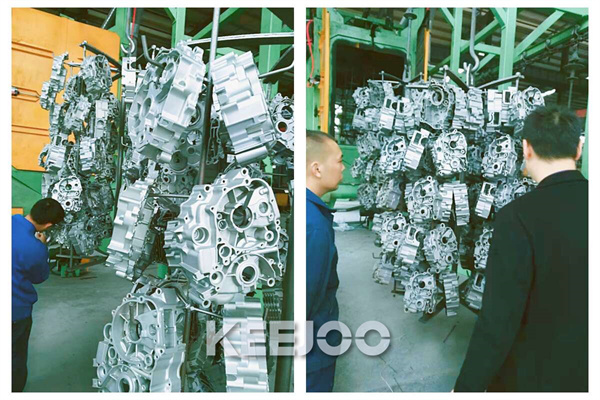

A large listed domestic agricultural equipment group phased out its outdated shot blasting machines in the past two years and fully adopted hook-type shot blasting machines independently developed and manufactured by Qingdao KEEJOO Group. Up to now, the group has purchased a total of 58 units...
The various shot blasting machines manufactured by Qingdao KEEJOO Group for European clients are highly acclaimed and well-received.

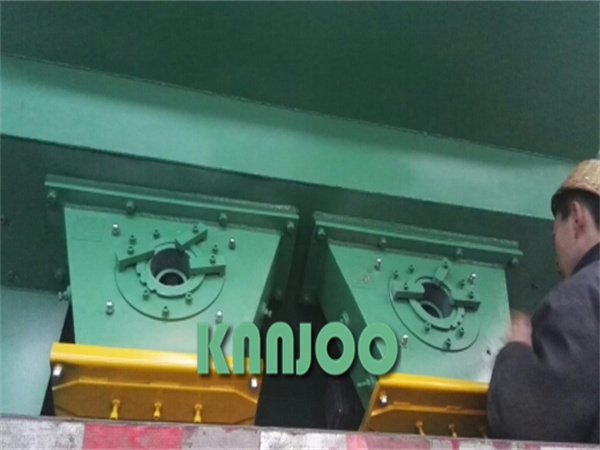

Introduction to the Components of the Shot Blasting Machine

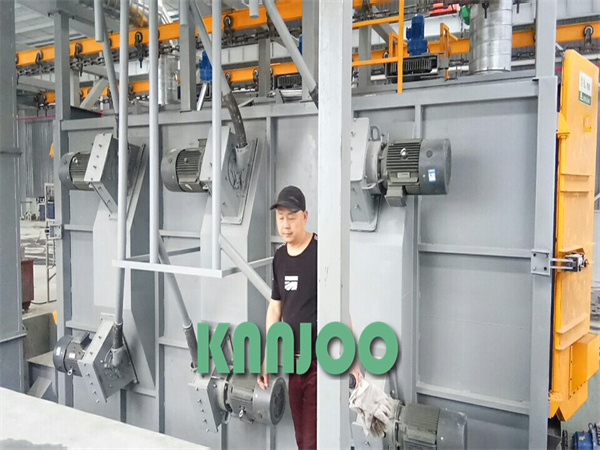

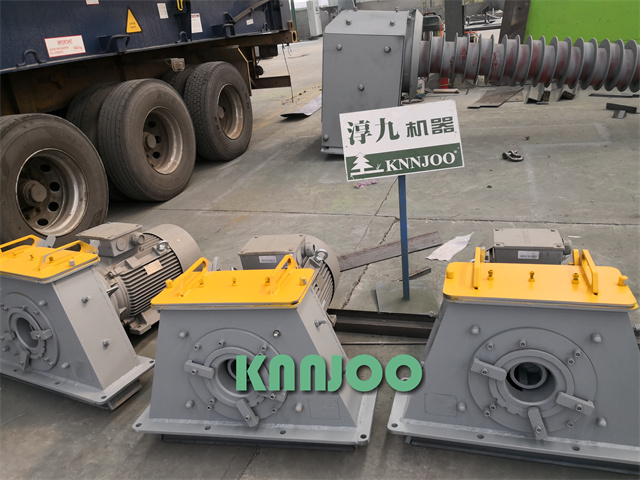

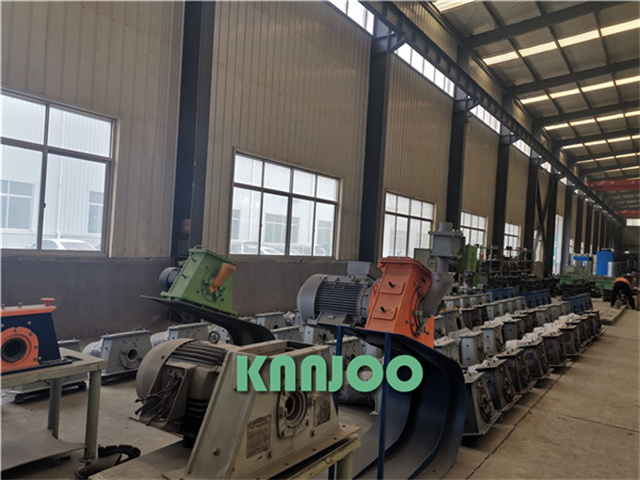

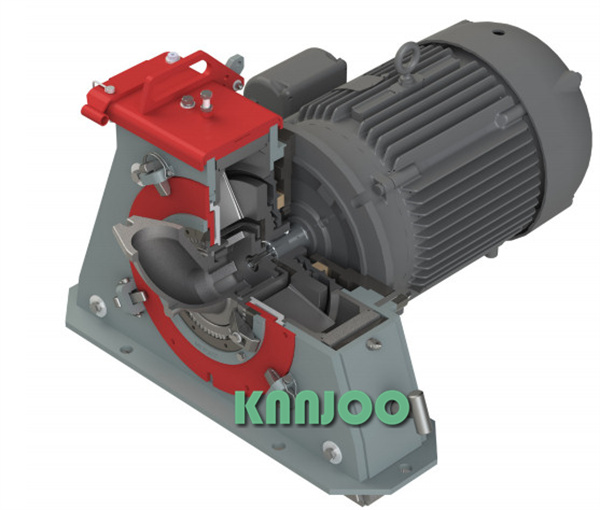

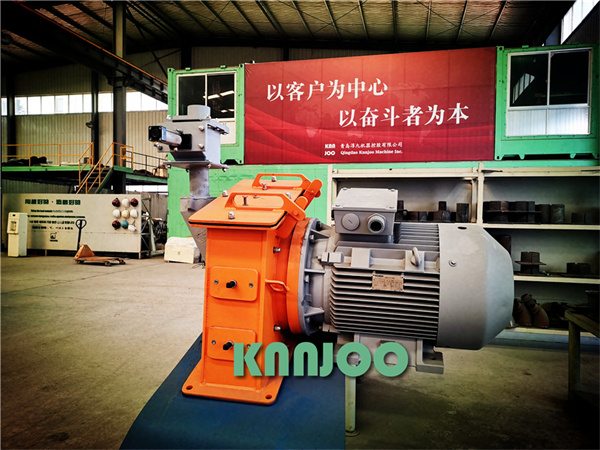

The blast wheel and motor adopt Germany-joint developed high-efficiency HP technology. Compared with conventional old-style blast wheels, this design eliminates multiple friction loss links, lifting motor efficiency by 20%, cutting down fault points and slashing maintenance costs by 50%.
It features a more compact footprint than traditional blast wheels, supports arbitrary installation angle arrangement, and enables far easier inspection and maintenance.
Constant blasting performance is maintained throughout operation, free from inconsistent and fluctuating cleaning quality seen on conventional units.
Blades and all wear-resistant consumables are manufactured in Taiwan via high-chromium investment precision casting, delivering outstanding abrasion resistance. Their service life ranges from 1,200 to 4,000 hours, 3–4 times longer than ordinary casting materials.
Blast wheel impeller: Treated with carburizing wear-resistant alloy. The impeller hub is one-time finished by high-precision CNC machining centers for ultra-high dimensional accuracy, ensuring perfect dynamic balance during high-speed rotation, low vibration, low noise and extended service life.
Equipped with SKF bearings imported from Sweden.
Fitted with genuine Siemens motors.
German Schenck dynamic balancing tester is applied to guarantee precise high-speed dynamic balance of impeller hubs.

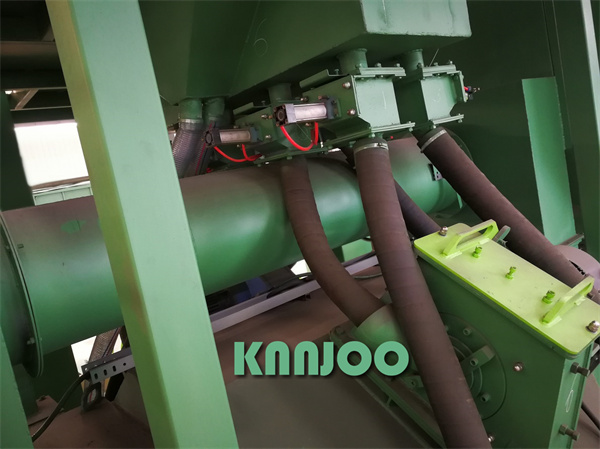

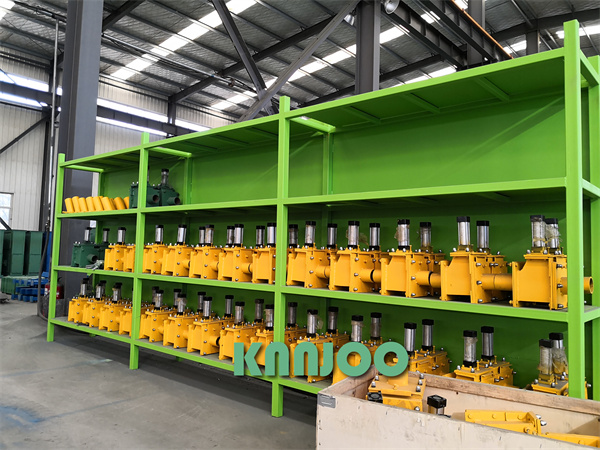

2 1 Abrasive flow valve
1. Semi-automatic flow control system for regulating the flow of abrasive media into the blast wheel, featuring manual adjustment of the steel shot flow rate.
2. Fully sealed structural design, featuring a lockable inspection opening and equipped with two bearings.
3. A manual shut-off valve is installed above each flow valve; this can be closed to stop the flow of media from the hopper, thereby facilitating maintenance of the flow valve.
3Blasting chamber
1. The shot blasting chamber is constructed from welded manganese steel.
2. Manganese steel protective plates are installed in the "hot zone" of the chamber—specifically covering three-quarters of the area directly exposed to the blast stream—to prevent steel shot from striking the chamber's outer walls; these plates are suspended for easy installation, removal, and replacement.
3. A three-layer sealing structure is installed at the top to prevent steel shot from leaking out during the blasting process.

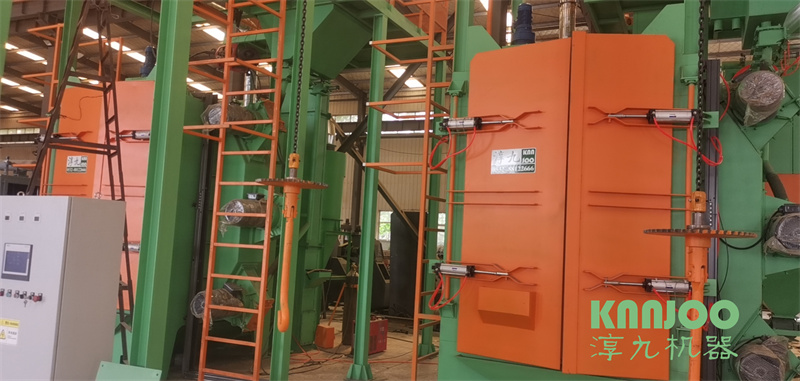

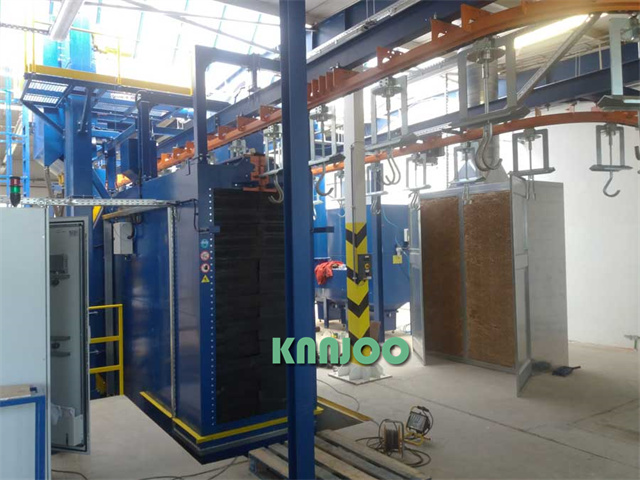

4Step-action pneumatic AB doors or continuous light curtain sensing system.
1. The shot blasting chamber features a compact structure and a sealed design based on German technology, ensuring that abrasive media does not scatter during operation.
2. The door utilizes an automatic opening and closing mechanism controlled by pneumatic cylinders.
3.Employing specialized processes and technology, the door is more reliable than conventional designs; it resists deformation and maintains its sealing integrity for 20 years—overcoming the performance degradation typical of traditional sealing methods after just six months.
1. Two sets of light curtain sensors are installed at the inlet and outlet, respectively; used in pairs, the sensor density can be selected based on workpiece size.
2. When a workpiece enters the blast chamber, the inlet light curtain detects its arrival, triggering a delayed start of the blast wheel. A light curtain sensor is also installed at the outlet; when the sensors at both the inlet and outlet detect no workpieces, the flow valve automatically closes immediately to prevent "air blasting" (blasting without a workpiece present).

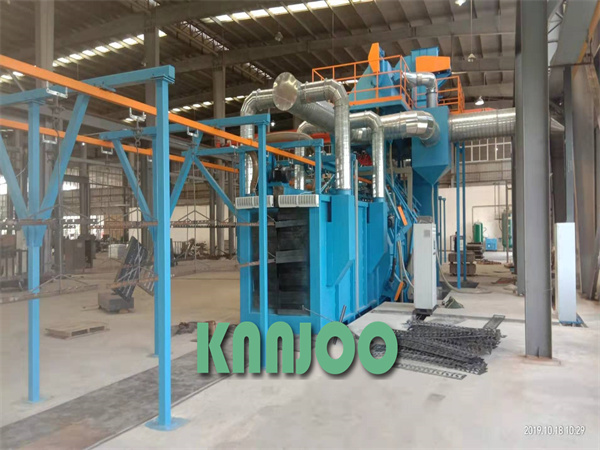

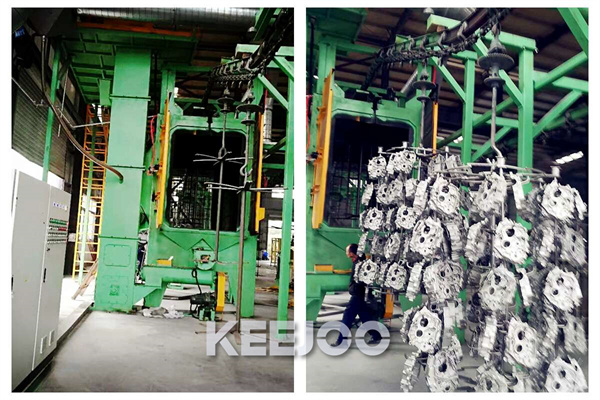

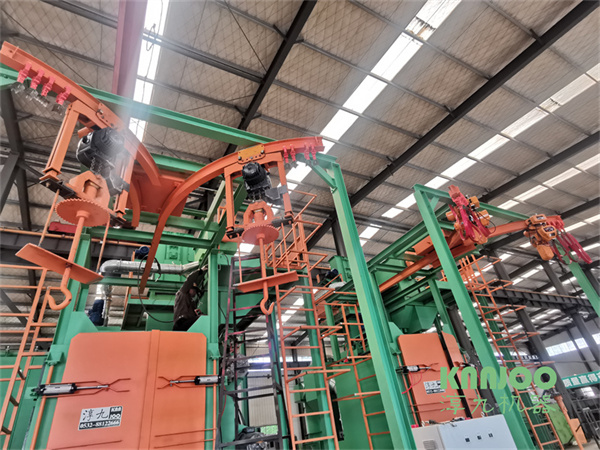

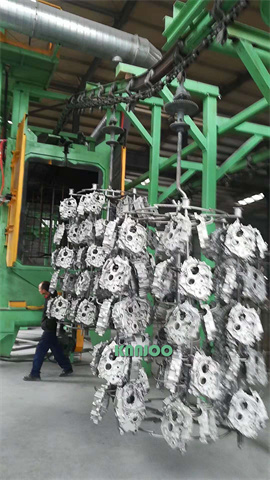

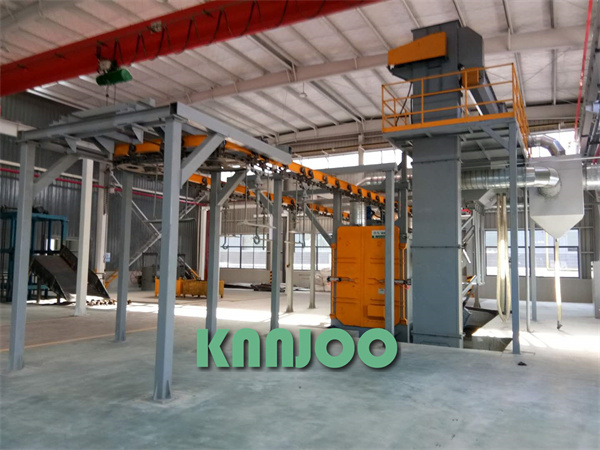

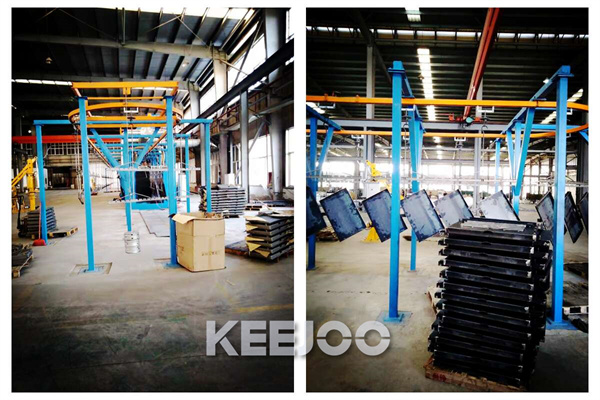

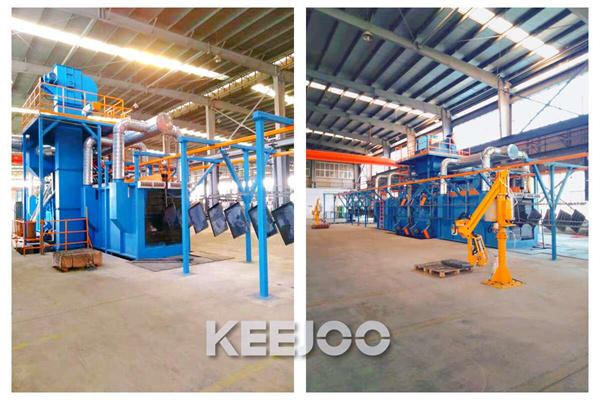

5Automatic Catenary System
1. One set of automatic closed-loop overhead conveyor system.
2. One set of tooling system, fabricated by welding wear-resistant steel rods after heat treatment (design can be customized based on specific customer requirements).
3. Variable frequency speed control, allowing speed adjustment according to shot blasting requirements.

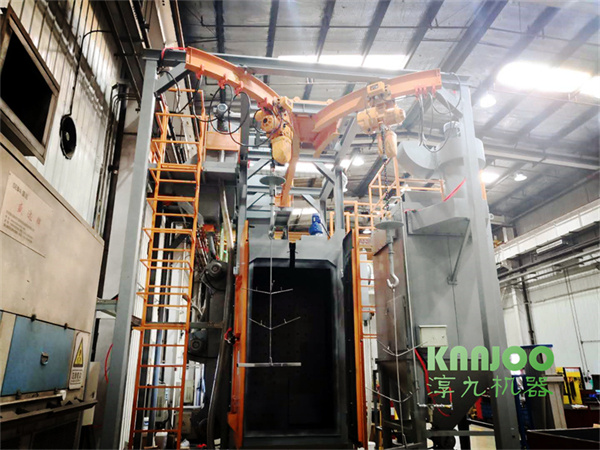

5.1Y‑shaped guide rail and automatic hanger changeover system
1. One set of Y-track trolley systems enables continuous operation across two workstations. A pneumatic valve controls the track-switching mechanism. While one hoist unit is engaged in the shot-blasting process, the other is used for loading and unloading.
2. Two sets of tooling systems, fabricated by welding wear-resistant steel rods after heat treatment (designs can be customized to meet specific customer requirements).
3. Two sets of hoist systems featuring a four-section telescopic framework and a chain electric hoist mechanism, ensuring excellent stability.
6Sorting system
1. A mesh screen separator is connected to the elevator and positioned above the magnetic separator; fine material passes through the screen into the magnetic separator, while coarse material and impurities are conveyed by a spiral mechanism along the screen to the discharge port at the rear.
2. It is designed to finely separate usable shot, broken shot, and dust, ensuring the uniformity of the shot media.
3.Featuring a welded structure, the interior contains multiple carefully designed compartments for airflow guidance. An access door on the front allows for routine inspection and maintenance; this door is equipped with an air inlet to provide the necessary airflow for dust separation.
4. An adjustable multi-vane baffle structure is used to regulate the uniformity of the falling abrasive curtain.
5. Stationary magnets installed at both the top and bottom enable the fine separation of usable shot from broken steel shot, ensuring the consistency of the blast media.
6. A storage hopper is connected at the bottom; after separation, the usable shot flows into the hopper for storage and subsequent reuse.

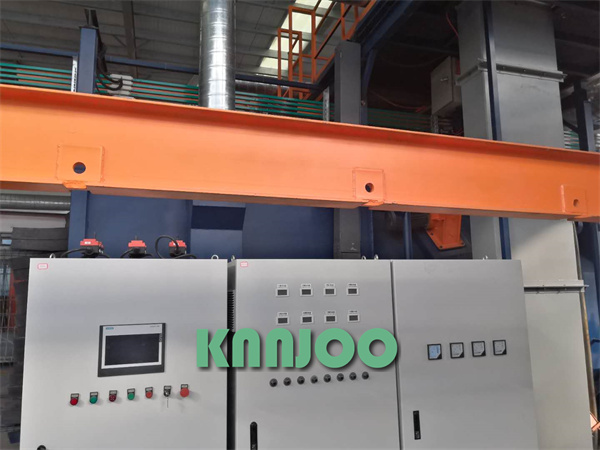

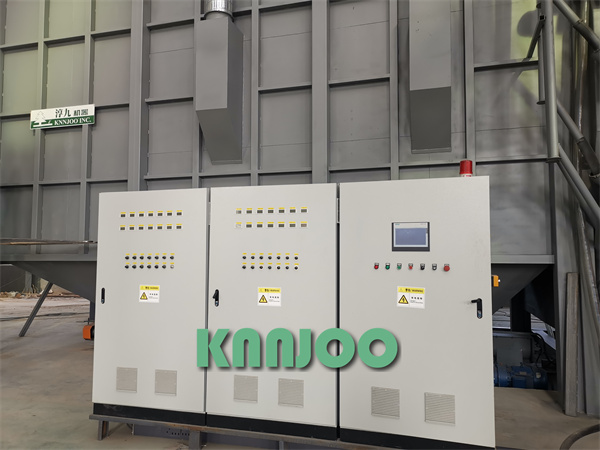

7Electrical control cabinet
1. Siemens PLC and touch screen
2. Siemens variable frequency drive (VFD) for speed control
3. Schneider low-voltage electrical components
4. Shot blasting time controller
5. AirTAC pneumatic components
6. Ammeter for flow monitoring
7. 1 lighting fixture
8. Dedicated constant-temperature air conditioning unit (optional)

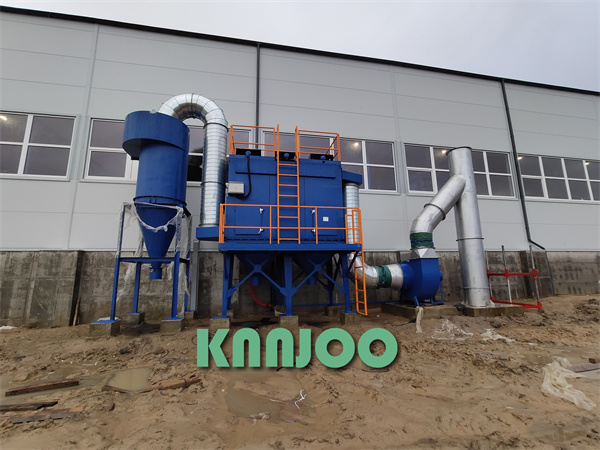

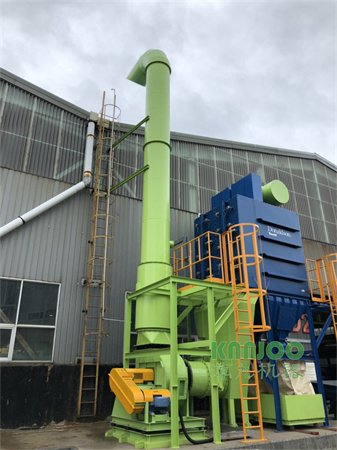

8Dust collector
Pulse-jet cleaning system
Precision filter cartridge filtration system
High-efficiency three-stage dust removal
Optimized and upgraded Donaldson (USA) dust removal technology system
Standard configuration： |
| 1 | Electrical cabinet: This model comes standard with a cooling fan; air conditioning is available as an option. |
| 2 | Programmable Logic Controller (PLC): Siemens (other brands available as options upon customer request) |
| 3 | Touchscreen: Siemens (other brands available as options upon customer request) |
| 4 | Variable Frequency Drive (VFD): Inovance (China) — (Specific brands can be designated upon customer request; we recommend our domestic brand, as its quality is on par with or superior to Siemens.) |
| 5 | Power supply voltage: AC 380V, three-phase five-wire system |
| 6 | Low-voltage electrical components: Schneider (other brands available upon customer request) |
| 7 | Pneumatic components: ARITAC series (other brands available upon customer request) |
| 8 | Wires and cables |
| 9 | Qingdao KEEJOO Group can also customize various non-standard shot blasting machines according to your requirements. |
Qingdao KEEJOO Group comprises three subsidiaries and an international business division, standing as a leading Asian manufacturer of high-end shot blasting and peening machinery, as well as environmental protection equipment. The company has introduced and developed over 100 types of shot blasting and peening machines for cleaning and surface strengthening; more than 20 of these products have filled gaps in the domestic market. Its products are utilized by renowned enterprises such as ThyssenKrupp, Siemens, FAW-Volkswagen, Cummins Engine, Dongfeng Motor, Weichai Power, Sinotruk (Jinan), China High-Speed Rail, Bombardier, Chery Automobile, North Benz, Hitachi Nuclear, Sany Heavy Industry, Fuji Heavy Industries, Tangshan Gear, Aisin (Japan), Alstom (France), Doosan (South Korea), and Caterpillar (USA). With exports reaching 49 countries—including Spain, France, the USA, South Korea, Japan, Singapore, Australia, and Russia—the company enjoys an excellent global and domestic reputation.
In recent years, by introducing and assimilating advanced technologies from companies such as Germany's AGTOS, KEEJOO has achieved a world-class level in product design. The company's high-efficiency, direct-drive shot blasting wheel—representing the best of Asian technology in this field—has garnered praise and recommendations from customers in Europe and the Americas.
The company was among the first in China's casting machinery industry to obtain ISO 9001, German TÜV, EU CE, French BV, and North American FCC certifications, as well as import-export rights. By introducing and further optimizing technologies from Germany, the United States, and other regions, the company has enhanced product performance and accelerated the phase-out of outdated technologies, earning recognition from new and existing customers worldwide.
