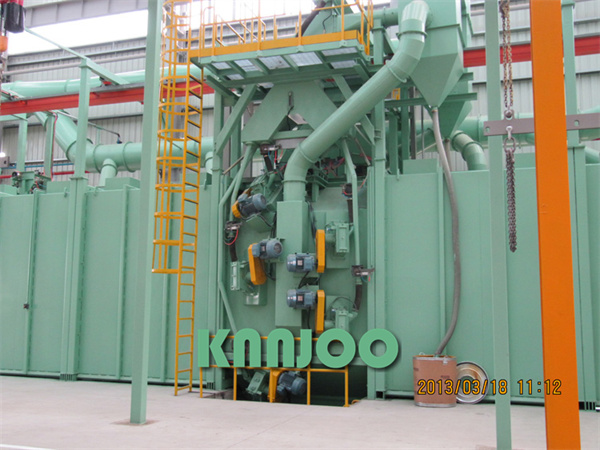

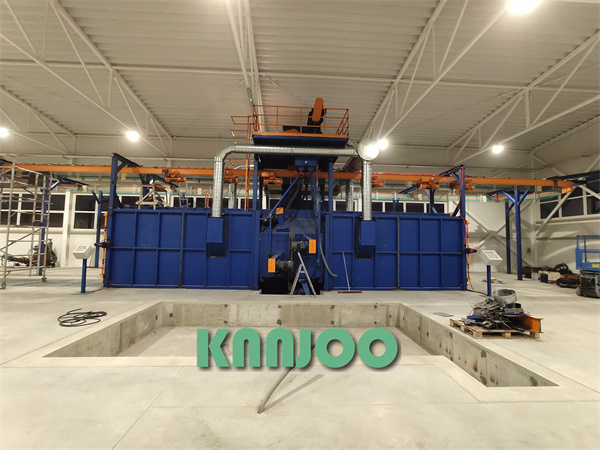

The climbing frame shot blasting machine manufactured for Foshan, Guangdong has won high praise from the customer!

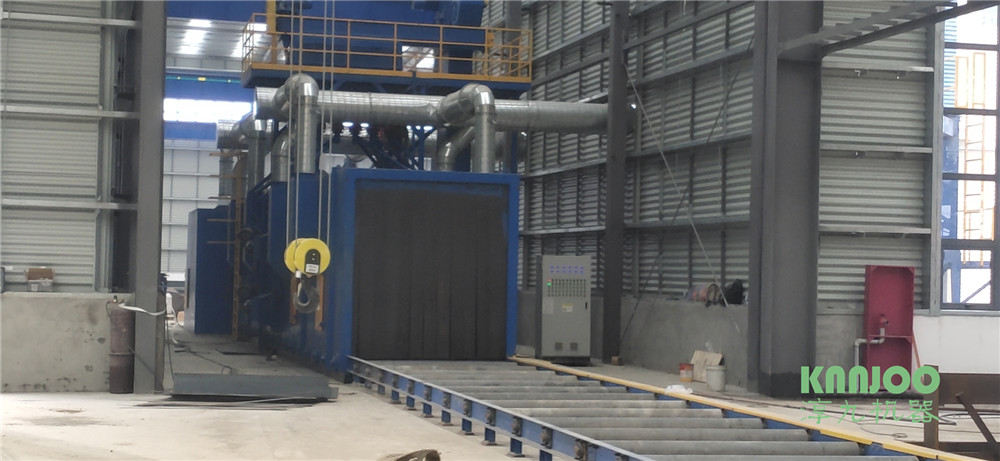

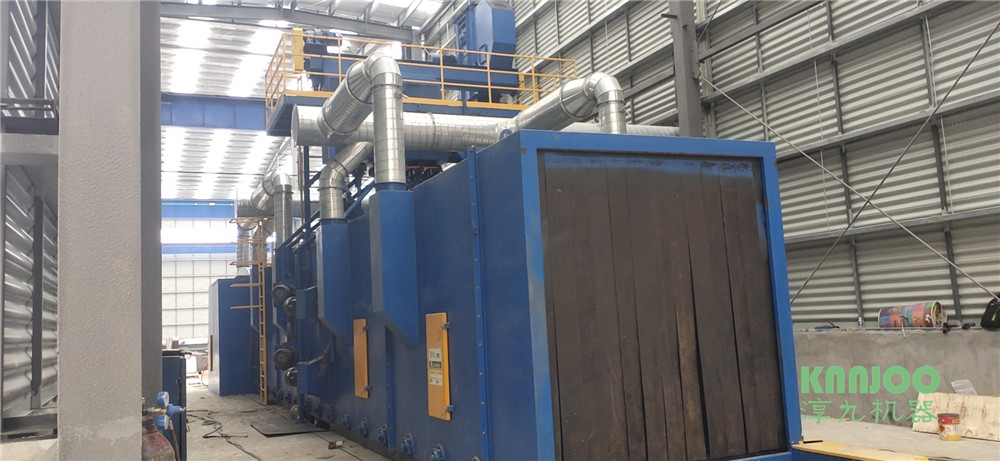

Pass-through Climbing Frame Shot Blasting Machine
This versatile pass-through shot blasting machine handles both construction climbing scaffolds and mesh panels; it features fourteen blast wheels for comprehensive, multi-directional shot blasting and rust/scale removal, delivering excellent results for construction machinery, climbing scaffolds, and mesh panels.
Working Principle of Pass-through Climbing Frame Shot Blasting Machine is as follows:
The climbing frame moves along a roller conveyor system; as it enters the cleaning chamber, the shot blasting machine begins its sequential operation. The process removes mill scale, dirt, and other deposits from the surface, resulting in a smooth, clean finish. The machine operates on a continuous, cyclical basis.
The abrasive shot discharged by the blast wheel is collected and processed by a circulation system for reuse. The circulation process operates as follows: scattered shot is conveyed via a lower longitudinal screw conveyor and an inclined chute to a bucket elevator; the bucket elevator lifts the shot and debris to the top of the blast chamber, where an upper transverse screw conveyor feeds the mixture into a high-efficiency BE separator; within the separator, dust and debris are removed from the usable shot, which is then stored in a hopper, ready for supply to the blast wheel.
Pass-through Climbing Frame Shot Blasting Machine Technical Features :
1. Roller conveyor features variable frequency speed control and supports both forward and reverse operation;
2. Equipped with high-efficiency blast wheels designed by Bairun Machinery, offering high shot flow rates and superior productivity;
3. The dust removal system utilizes a new type of cartridge dust collector with pulse-jet cleaning, ensuring high efficiency and ease of installation and maintenance;
4. The blast chamber features a robust riveted and welded structure made of structural steel and plates, offering excellent strength and rigidity;
5. The chamber interior is lined with wear-resistant plates that withstand abrasion and impact, ensuring a long service life;
6. Labyrinth seals are employed to prevent abrasive media from escaping;
7. The equipment is fitted with safety protection devices to ensure safe, effective, and efficient operation.
After-sales Service for Pass-through Climbing Frame Shot Blasting Machine:
1. Our company will assign dedicated after-sales service technicians to the site to guide customers with installation and commissioning.
2. Provide on-site training for operators.
3. After completion of the complete equipment installation, we will arrange 1 to 2 full-time technicians to assist customers in production free of charge for 24–48 hours until the customer is satisfied.
For customers purchasing our equipment, we assign dedicated technical personnel to provide on-site guidance for installation and commissioning, as well as training for operators to ensure they master equipment operation and basic maintenance procedures. We also provide comprehensive, ongoing support, ensuring complete peace of mind when purchasing our shot blasting machines.
Qingdao KEEJOO Group is a specialized manufacturer of shot blasting and peening equipment. Located in the beautiful coastal city of Qingdao, Shandong Province—along the shores of the Yellow Sea—the company is an innovative enterprise integrating research and development, production, sales, and service.
The company’s primary products include hook-type, tumble-belt, pass-through steel plate, structural steel, overhead rail, rotary table, wire rod, and external steel pipe shot blasting machines, as well as sandblasting rooms, shot blasting production lines, special alloy wear-resistant parts, and related accessories. Additionally, the company designs and manufactures various non-standard, specialized foundry machines tailored to specific customer requirements. Utilizing CAD (Computer-Aided Design) for all product development, the company supplies cost-effective equipment to industries such as foundry, metallurgy, automotive, shipbuilding, construction, mining machinery, and engineering machinery, while also undertaking comprehensive turnkey projects that encompass design, manufacturing, commissioning, training, and after-sales service.

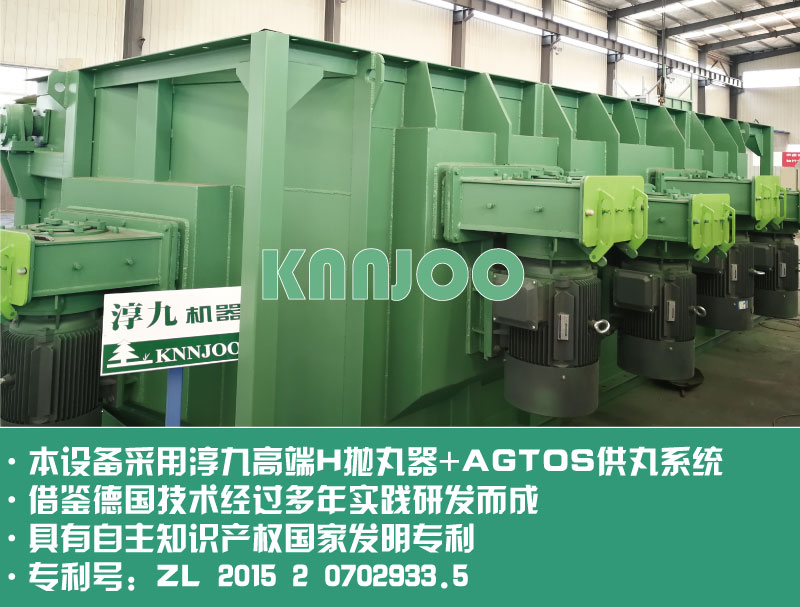

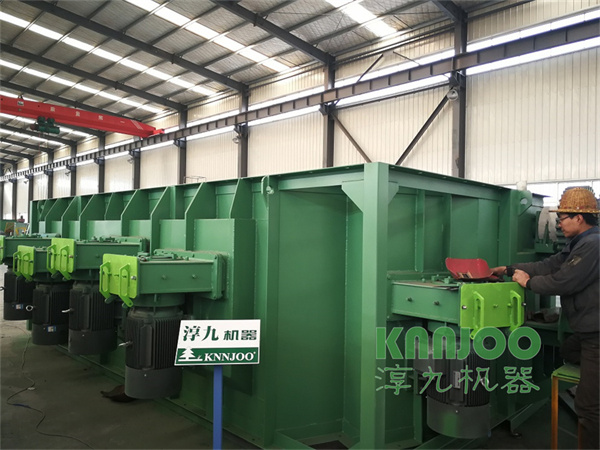

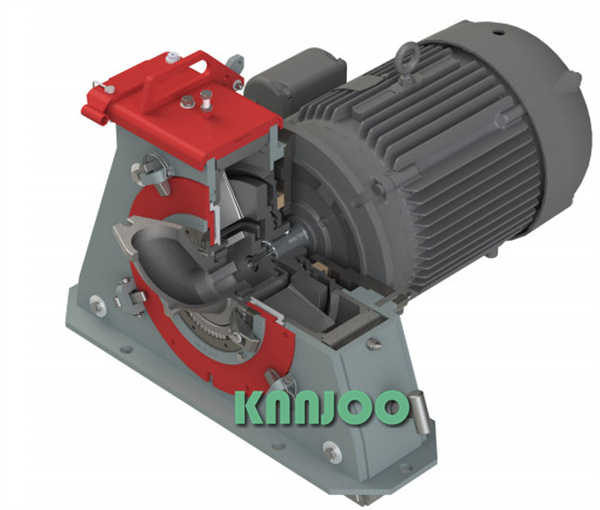

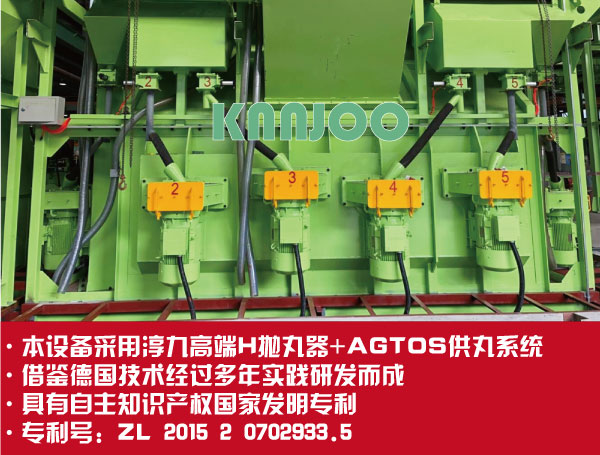

This machine is equipped with the HAI Ocean Surge® direct-coupled high-efficiency blast wheel (German design with independent patents).
The blast wheel is the heart of a shot blasting machine, and its design determines the performance of the entire system. The HAI Pengpai® blast wheel comes as standard equipment, delivering superior blasting performance. Available in a variety of sizes and materials, the H-series blast wheel ensures flexibility across diverse manufacturing processes. Its key advantages include enhanced blasting performance, reduced abrasive consumption, significantly extended equipment uptime, and effective noise reduction.The casing is lined with curved, multi-layer labyrinth-style sealing plates; the hot zone features a thickness of 70mm, ensuring excellent sealing performance and a uniform distribution of the projected abrasive media over an expanded coverage area. The internal design allows for the adjustment of abrasive trajectories, thereby enhancing blasting efficiency and minimizing self-wear. Additionally, a specialized dynamic design boosts efficiency by 30% compared to standard blast wheels.
Selected Cases of KEEJOO Roller Conveyor Steel Shot Blasting Machine
245 sets of section steel shot blasting machines manufactured for Hangxiao Steel Structure Company
16 sets of section steel shot blasting machines manufactured for Hangzhou Southeast Grid
Shanghai Guandar steel profiled steel roller conveyor shot blasting machine 2 sets
9 sets of section steel shot blasting machines manufactured for China Construction Steel Structure Tianjin Company
8 sets of through-type shot blasting machines manufactured for Shanghai Baoye Steel Structure
So far, the performance of more than 600 set-type steel pass-through shot blasting machines at home and abroad is far ahead.
......

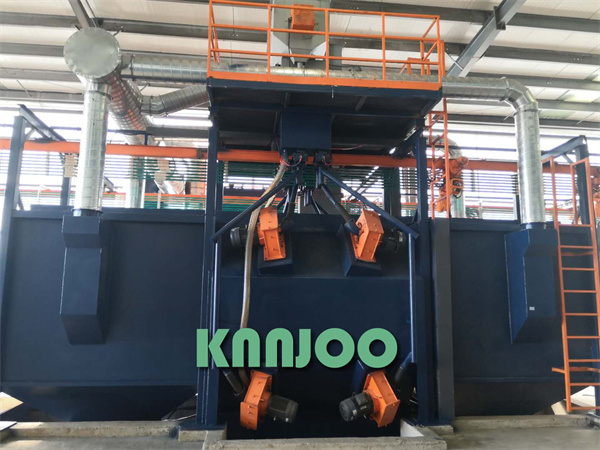

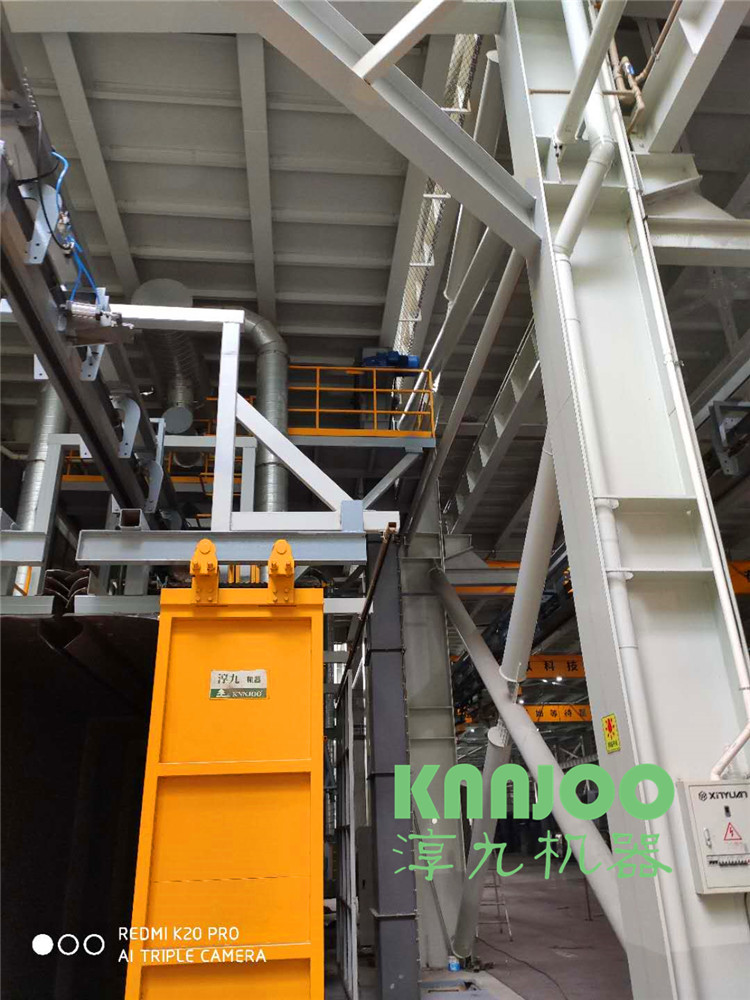

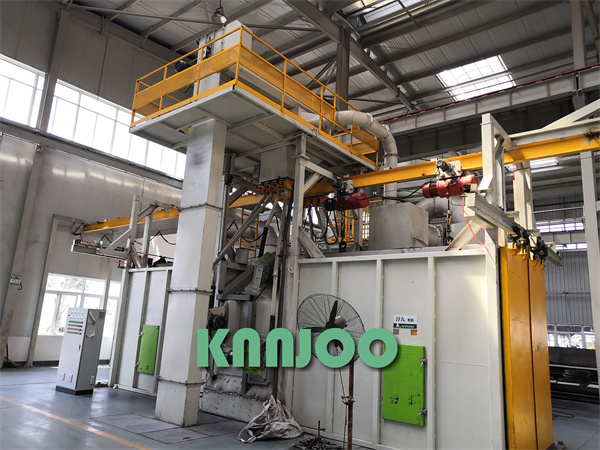

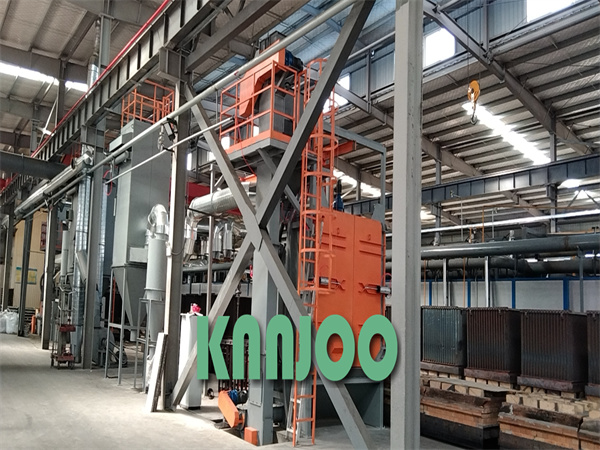

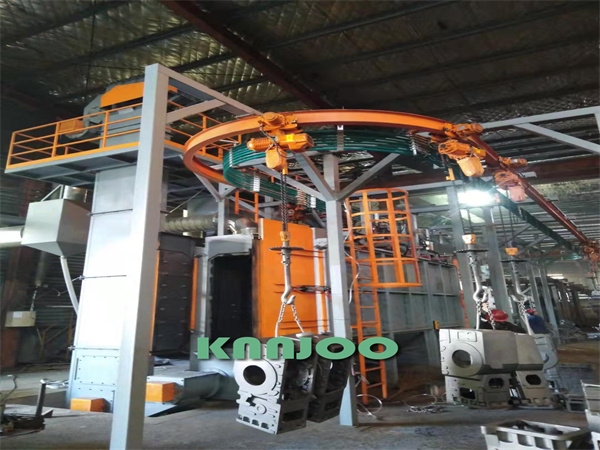

A large listed domestic agricultural equipment group phased out its outdated shot blasting machines in the past two years and fully adopted hook-type shot blasting machines independently developed and manufactured by Qingdao KEEJOO Group. Up to now, the group has purchased a total of 58 units.........
The various shot blasting machines manufactured by Qingdao KEEJOO Group for European clients are highly acclaimed and well-received.!
Introduction to the Components of the Shot Blasting Machine

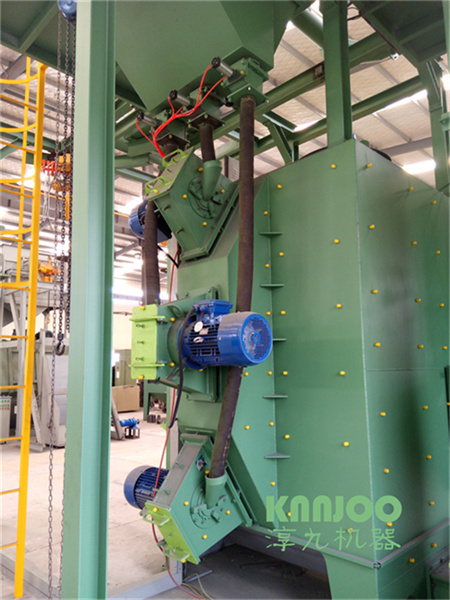

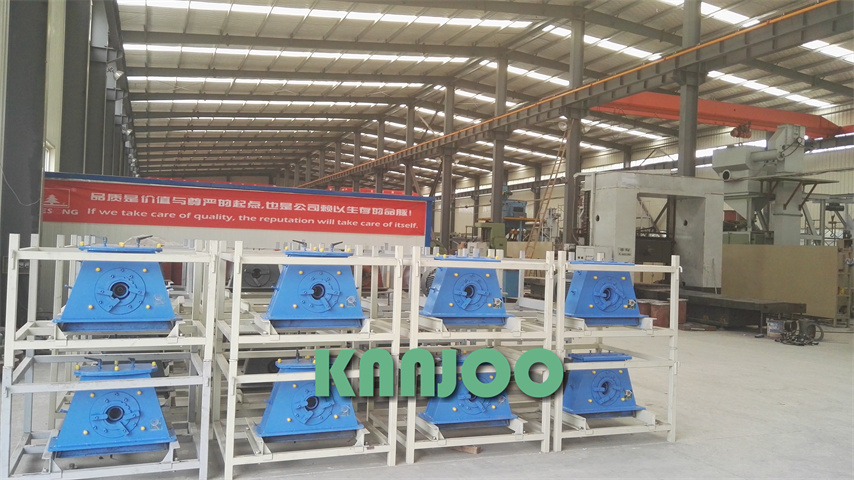

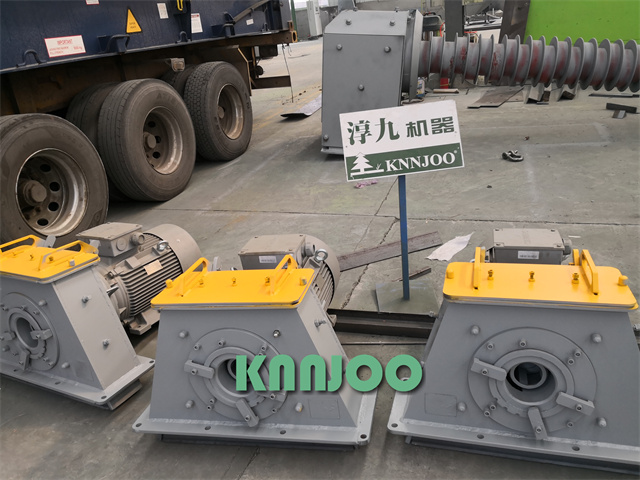

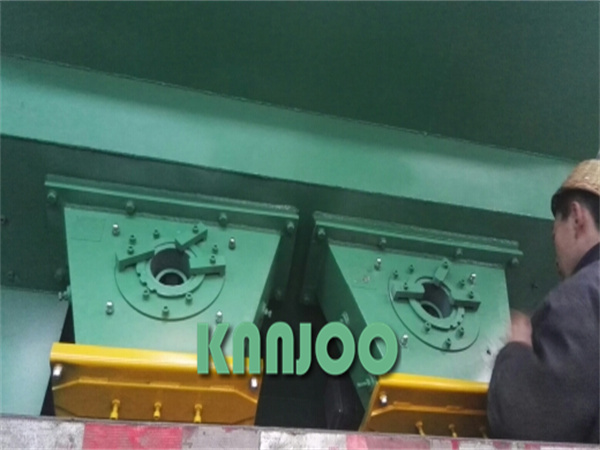

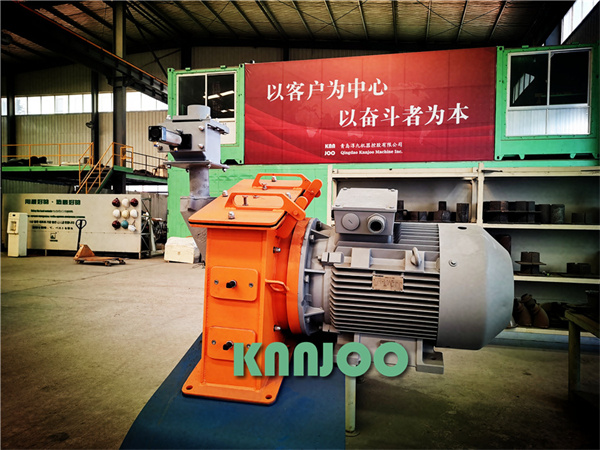

1Blast wheel
1. The blast wheel and motor adopt Germany-joint developed high-efficiency HP technology. Compared with conventional old-style blast wheels, this design eliminates multiple friction loss links, lifting motor efficiency by 20%, cutting down fault points and slashing maintenance costs by 50%.
2. features a more compact footprint than traditional blast wheels, supports arbitrary installation angle arrangement, and enables far easier inspection and maintenance.
3. Constant blasting performance is maintained throughout operation, free from inconsistent and fluctuating cleaning quality seen on conventional units.
4. Blades and all wear-resistant consumables are manufactured in Taiwan via high-chromium investment precision casting, delivering outstanding abrasion resistance. Their service life ranges from 1,200 to 4,000 hours, 3–4 times longer than ordinary casting materials.
5. Blast wheel impeller: Treated with carburizing wear-resistant alloy. The impeller hub is one-time finished by high-precision CNC machining centers for ultra-high dimensional accuracy, ensuring perfect dynamic balance during high-speed rotation, low vibration, low noise and extended service life.
6. Equipped with SKF bearings imported from Sweden.
7. Fitted with genuine Siemens motors.
8. German Schenck dynamic balancing tester is applied to guarantee precise high-speed dynamic balance of impeller hubs.

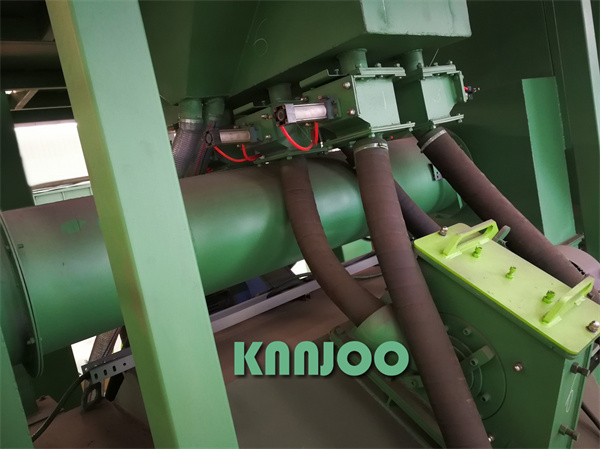

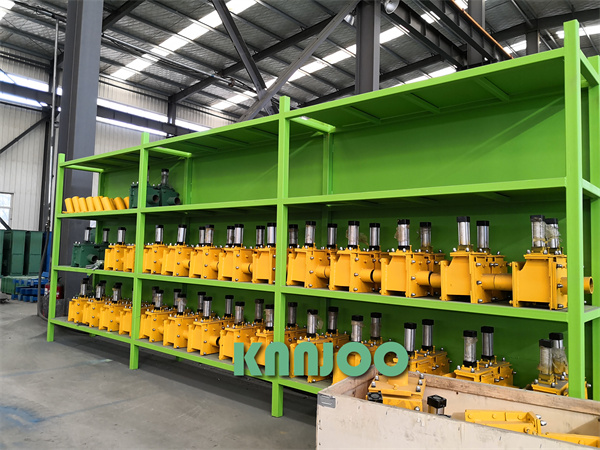

2Flow control valve
1. Semi-automatic flow control system for regulating the flow of abrasive media into the blast wheel, featuring manual adjustment of the steel shot flow rate.
2. Fully sealed structural design, featuring a lockable inspection opening and equipped with two bearings.
3. A manual shut-off valve is installed above each flow valve; this can be closed to stop the flow of media from the hopper, thereby facilitating maintenance of the flow valve.

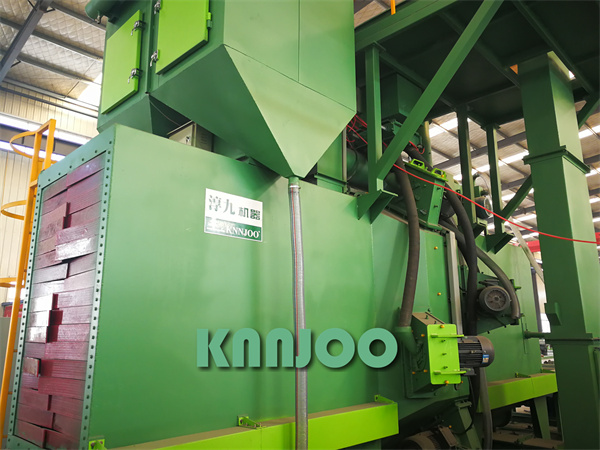

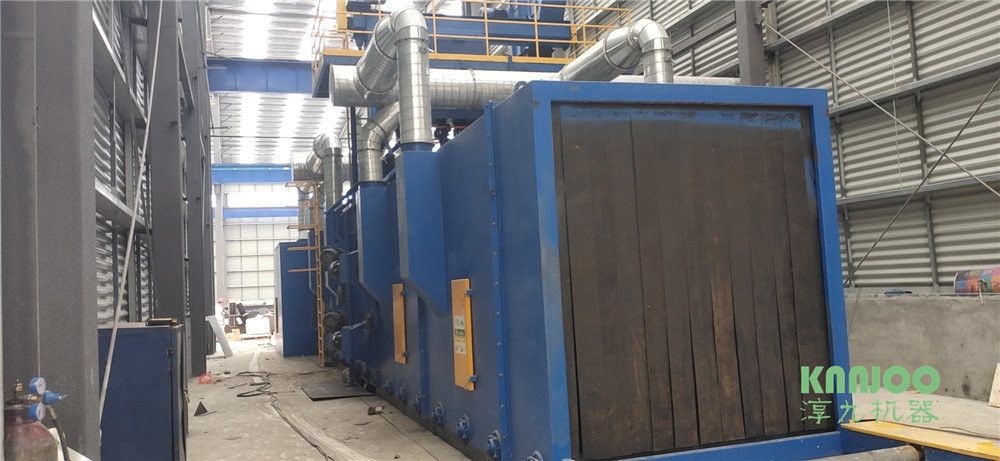

3Blasting chamber
1. The shot blasting chamber is constructed from welded manganese steel.
2. Manganese steel protective plates are installed in the "hot zone" of the chamber—specifically covering three-quarters of the area directly exposed to the blast stream—to prevent steel shot from striking the chamber's outer walls; these plates are suspended for easy installation, removal, and replacement.
3. A three-layer sealing structure is installed at the top to prevent steel shot from leaking out during the blasting process.
4Variable-frequency automatic speed-regulating conveyor system (comprising an infeed roller conveyor, a shot-blasting zone roller conveyor, and an outfeed roller conveyor with automatic speed regulation)
Roller conveyor pass-through type:1. The workpiece conveying system for the entire production line utilizes stepless variable-frequency speed control and consists of an input roller conveyor, a shot-blasting chamber roller conveyor, and an output roller conveyor.
2. The rollers for both the input and output roller tables are manufactured by welding heat-treated shaft ends to high-quality carbon steel seamless pipes, followed by integral machining on a lathe. Machining is performed after welding to ensure both a load-bearing capacity of 0.5 t/m and precise coaxiality.
3. The rollers within the shot blasting chamber that are subjected to the impact of the shot are all fitted with easily replaceable, wear-resistant sleeves made of special high-chromium-molybdenum iron.
4. The roller pitch is 600–800 mm, and the entire line utilizes variable-frequency speed control, enabling both high-speed and low-speed workpiece transport.

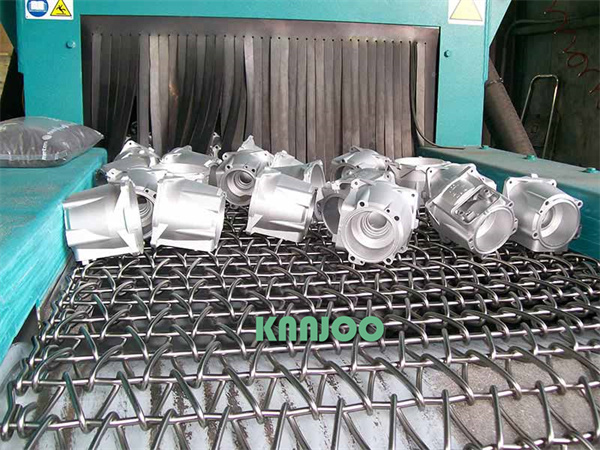

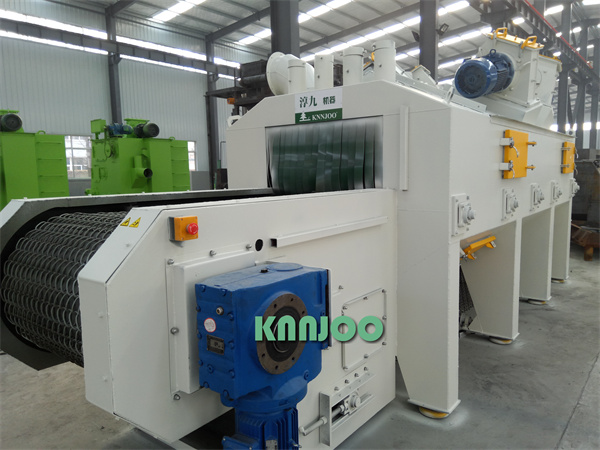

Wire mesh-belt conveyor type:
1. The system comprises dozens of transmission components, including carbon steel rollers, sprockets and chains, mesh belts, and bearings. The roller conveyor is divided into three sections: the infeed section, the shot-blasting section, and the discharge section. The rollers are constructed by precision-welding quenched-and-tempered end caps to high-quality seamless carbon steel pipes; their profiles and mounting dimensions are machined after welding to ensure compliance with load-bearing and coaxiality requirements.
2. The roller conveyors inside the blast chamber are equipped with easily replaceable wear-resistant medium-chromium cast iron sleeves. Labyrinth seals made of wear-resistant manganese steel are used at both ends of the roller shafts, completely preventing abrasive media from wearing down the bearings.
3. Utilizes imported HD wear-resistant manganese steel that has undergone solution and tempering treatments to eliminate internal residual stresses, moderately reduce the hardness of the manganese steel wire, and enhance its toughness and ductility.
4. A geared drive motor is installed on the right side of the conveyor belt and directly coupled to the drive roller, propelling both the belt and the workpieces; variable frequency speed control is employed, providing a conveying speed of 0.5–4 m/min.
5. A roller is installed under the driving shaft to serve as a guide and tensioner. When the steel mesh belt is loose, it can be tightened through this mechanism.

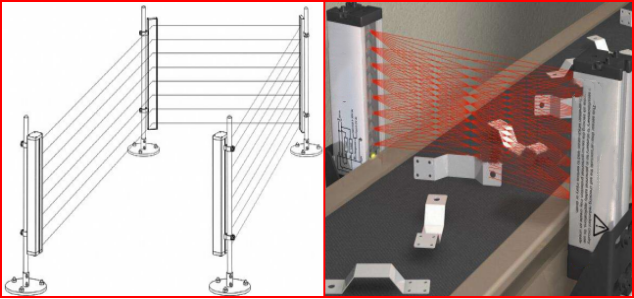

5Light curtain sensing system, automatic loading system/automatic unloading system
1. Two sets of light curtain sensing units are installed at the infeed and outfeed openings, respectively; the light curtain resolution can be selected based on workpiece size, and the units are used in pairs.
2. When a workpiece enters the shot blasting chamber, a light curtain at the inlet detects its presence, triggering a delayed start of the blast wheels. A light curtain sensor is also installed at the outlet; when the inlet and outlet sensors detect that no workpieces are passing through, the flow valve closes automatically and immediately to prevent "air blasting" (blasting without a workpiece present).
6Sorting system
1. A mesh screen separator is connected to the elevator and positioned above the magnetic separator; fine material passes through the screen into the magnetic separator, while coarse material and impurities are conveyed by a spiral mechanism along the screen to the discharge port at the rear.
2. It is designed to finely separate usable shot, broken shot, and dust, ensuring the uniformity of the shot media.
3.Featuring a welded structure, the interior contains multiple carefully designed compartments for airflow guidance. An access door on the front allows for routine inspection and maintenance; this door is equipped with an air inlet to provide the necessary airflow for dust separation.
4. An adjustable multi-vane baffle structure is used to regulate the uniformity of the falling abrasive curtain.
5. Stationary magnets installed at both the top and bottom enable the fine separation of usable shot from broken steel shot, ensuring the consistency of the blast media.
6. A storage hopper is connected at the bottom; after separation, the usable shot flows into the hopper for storage and subsequent reuse.

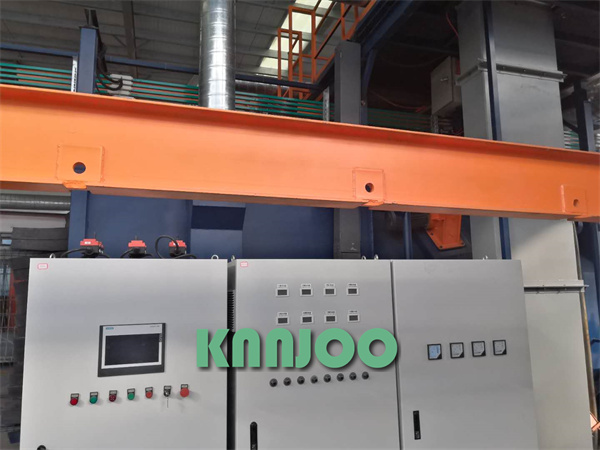

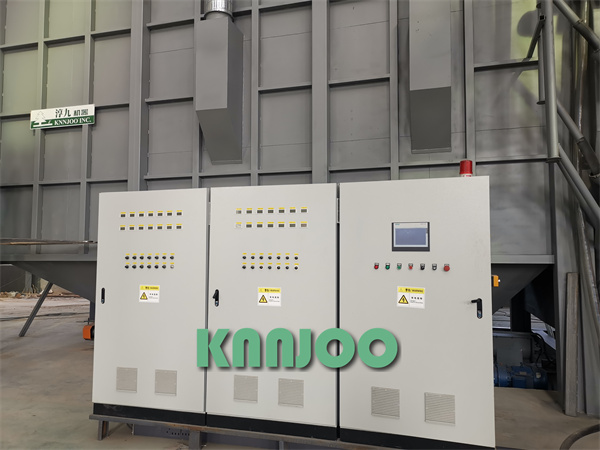

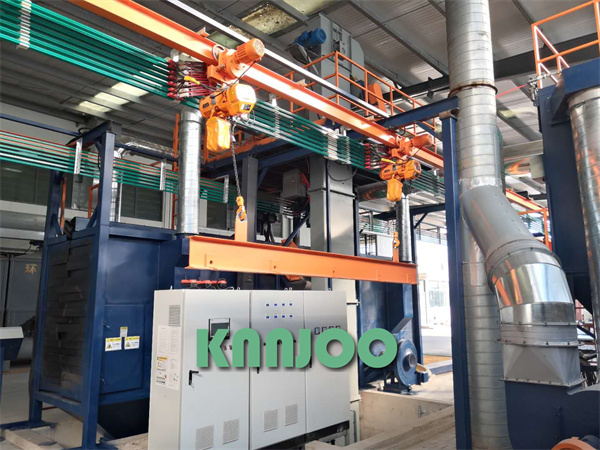

7Electrical control cabinet
1. Siemens PLC and touch screen
2. Siemens variable frequency drive (VFD) for speed control
3. Schneider low-voltage electrical components
4. Shot blasting time controller
5. AirTAC pneumatic components
6. Ammeter for flow monitoring
7. 1 lighting fixture
8. Dedicated constant-temperature air conditioning unit (optional)

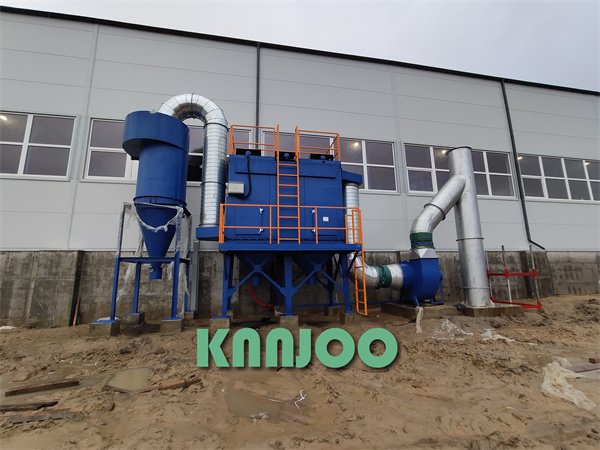

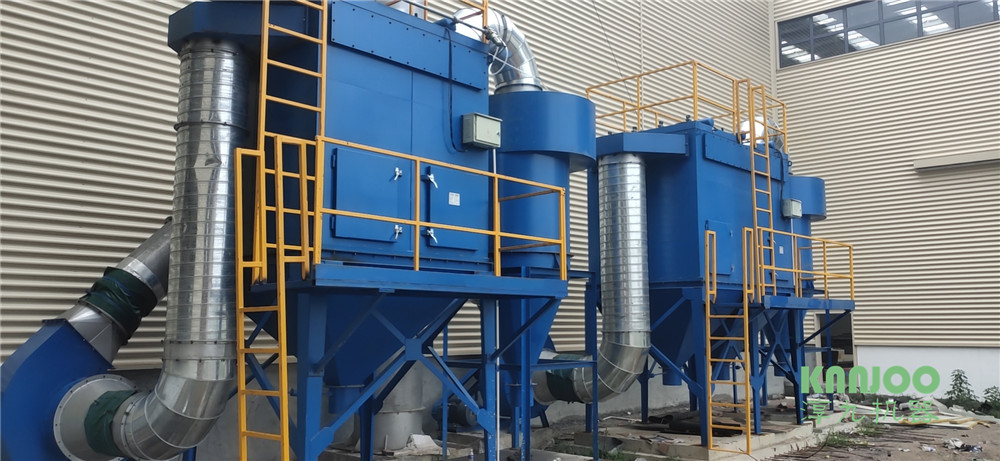

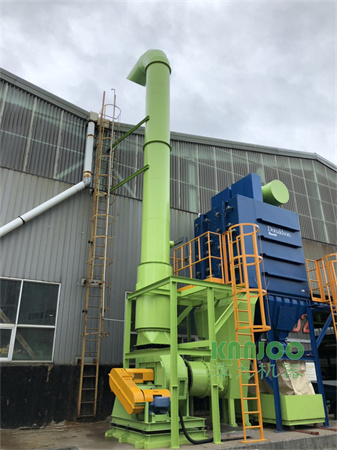

8Dust collector
Pulse-jet cleaning system
Precision filter cartridge filtration system
High-efficiency three-stage dust removal
Optimized and upgraded Donaldson (USA) dust removal technology system
Standard configuration： |
| 1 | Electrical cabinet: This model comes standard with a cooling fan; air conditioning is available as an option. |
| 2 | Programmable Logic Controller (PLC): Siemens (other brands available as options upon customer request) |
| 3 | Touchscreen: Siemens (other brands available as options upon customer request) |
| 4 | Variable Frequency Drive (VFD): Inovance (China) — (Specific brands can be designated upon customer request; we recommend our domestic brand, as its quality is on par with or superior to Siemens.) |
| 5 | Power supply voltage: AC 380V, three-phase five-wire system |
| 6 | Low-voltage electrical components: Schneider (other brands available upon customer request) |
| 7 | Pneumatic components: ARITAC series (other brands available upon customer request) |
| 8 | Wires and cables |
| 9 | Qingdao KEEJOO Group can also customize various non-standard shot blasting machines according to your requirements.
|
Qingdao KEEJOO Group comprises three subsidiaries and an international business division, standing as a leading Asian manufacturer of high-end shot blasting and peening machinery, as well as environmental protection equipment. The company has introduced and developed over 100 types of shot blasting and peening machines for cleaning and surface strengthening; more than 20 of these products have filled gaps in the domestic market. Its products are utilized by renowned enterprises such as ThyssenKrupp, Siemens, FAW-Volkswagen, Cummins Engine, Dongfeng Motor, Weichai Power, Sinotruk (Jinan), China High-Speed Rail, Bombardier, Chery Automobile, North Benz, Hitachi Nuclear, Sany Heavy Industry, Fuji Heavy Industries, Tangshan Gear, Aisin (Japan), Alstom (France), Doosan (South Korea), and Caterpillar (USA). With exports reaching 49 countries—including Spain, France, the USA, South Korea, Japan, Singapore, Australia, and Russia—the company enjoys an excellent global and domestic reputation.
In recent years, by introducing and assimilating advanced technologies from companies such as Germany's AGTOS, KEEJOO has achieved a world-class level in product design. The company's high-efficiency, direct-drive shot blasting wheel—representing the best of Asian technology in this field—has garnered praise and recommendations from customers in Europe and the Americas.
The company was among the first in China's casting machinery industry to obtain ISO 9001, German TÜV, EU CE, French BV, and North American FCC certifications, as well as import-export rights. By introducing and further optimizing technologies from Germany, the United States, and other regions, the company has enhanced product performance and accelerated the phase-out of outdated technologies, earning recognition from new and existing customers worldwide.
Next step？
Spare Parts and Consumables
We provide high-quality replacement parts with extended service lives. As a major supplier of spare parts in the industry, we offer rapid global delivery, helping you avoid the need for large inventories and preventing production downtime.

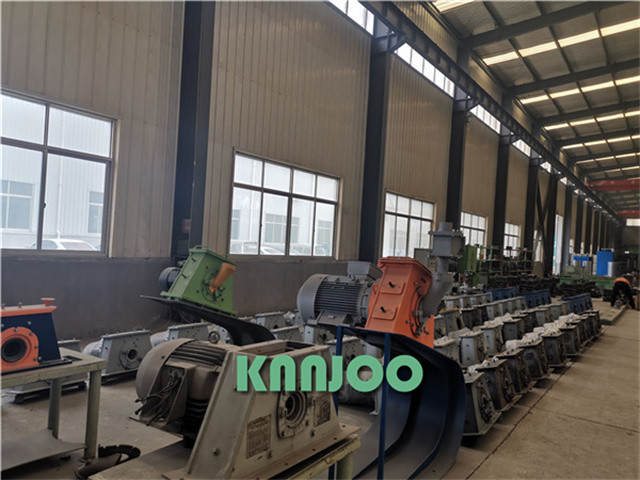

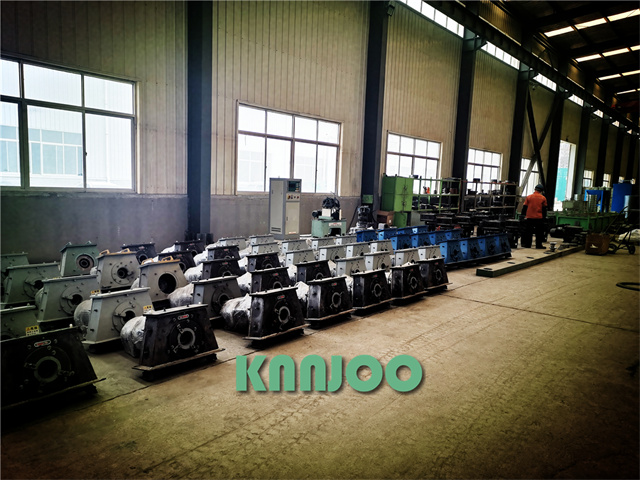

High-end shot blasting unit manufacturing workshop
Equipment Upgrade
We will keep you updated on the latest technology upgrades so you can decide whether to incorporate them into your equipment's routine maintenance to ensure optimal service life.
Equipment Modernization and Upgrading
本机配有HAI海之澎湃®直连轴高效抛丸器（德式，具有自主专利）；
抛丸器是抛丸机的心脏，其设计决定了整个设备的性能。HAI澎湃®抛丸器，该设备的标配.H系列抛丸器提供了优良的抛丸性能。H抛丸器拥有多种尺寸和材质以确保针对各种制造工序的灵活应用.H抛丸器的优势在于：更高的抛丸性能，更少的丸料消耗，大大延长了设备的运行时间，有效降低噪音。壳体内衬有弧形多层迷宫式密封护板，热区厚度达到70mm，密封效果极佳，抛射出的弹丸分布均匀，扩大了弹丸分布区。并内部带有磨料运动轨迹调节设计，提高抛丸效率，减少自磨损；特殊的动力工艺设计，比一般的抛丸器可以提高30%效率。
淳九辊道型钢抛丸机部分案例
为杭萧钢构公司制造的型钢抛丸清理机245台套
为杭州东南网架制造的型钢抛丸机16台套
上海冠达尔钢构型钢辊道通过式抛丸机2台套
为中建钢构天津公司制造的型钢抛丸机9台套
为上海宝冶钢构制造的通过式抛丸机8台套
迄今为止国内外六百多台套型钢通过式抛丸机的业绩，遥遥领先
......
国内某大型上市农业装备集团，近两年淘汰老式的抛丸机，全部采用淳九机器控股公司研发制造的抛丸机，目前已达58台之多......
淳九控股抛丸机公司为欧洲各客户制造的各类抛丸机深受好评和欢迎！
抛丸机各部分简介
1抛丸器
1抛丸器与电动机采用德国合作高效HP技术，相较于老式传统抛丸器，减少了摩擦损耗环节，不但大大提高了电动机功效20%，故障点也更少，维修成本降低50%。
2 相较于传统抛丸器，体积更小，可任意布置角度，且检修更加方便。
3 相较于传统抛丸器，抛丸效果恒定，清理质量不会忽高忽低。
4 叶片、耐磨件选用台湾高铬熔模精铸制成，有较高的耐磨性，使用寿命约1200-4000小时，是普通铸材的3-4倍；
5 抛丸器叶轮：叶轮采用耐磨合金渗碳处理。叶轮体采用高精度数控加工中心一次性加工而成，精度高，保证了高速运转的平衡性，震动低、噪音低、寿命长；
6 轴承采用瑞典SKF公司产品；
7 电机采用西门子Siemens公司产品；
8 采用德国Schenck动平衡仪，保证叶轮体的高速动平衡；
2流量阀
1. 半自动流量控制系统，用于控制进入抛丸器的丸料流量，通过手动调节钢丸流量
2. 全密封的结构设计，带可锁定的检查开口，配有二个轴承。
3. 每个流量阀门上端，各装有一个手动截止阀，如果需要维修流量阀时，可以关闭，用以关闭从料仓流下的丸料，方便维护。
3抛丸室体
1. 抛丸室采用全锰钢焊接而成。
2. 抛丸室内热区安装数块锰钢防护板，位于抛头直射区3/4区域，防止钢丸溅射抛丸室外壁，采用悬挂固定，安装简单，易于拆卸更换。
3. 顶部安装有三层密封结构，防止抛丸作业过程中钢丸从顶部泄漏。
4变频自动调速输送系统（一套进料辊道+抛丸区辊道+出料辊道输送系统自动调速）
辊道通过式：1. 整套生产线工件输送系统采用无级变频调速，输送系统由输入辊道、抛丸室辊道、输出辊道组成。
2. 输入、输出辊道辊轴均采用优质碳素钢无缝钢管与调质轴头焊接后整体车床加工而成。外形及安装尺寸焊后加工，即保证了承载负荷0.5T/m，又保证了同轴度。
3. 抛丸室内承受丸粒抛打的辊，均装有可方便更换的高铬钼特铁耐磨护套。
4. 辊道辊距600-800mm，全线采用变频调速，可快速、慢速输送工件。
网带通过式：
1. 由数十个碳钢辊筒、链轮链条、网带、轴承等传动部件组成，辊道输送分为三段：进料段、抛丸段和出料段，辊筒均采用优质碳素钢无缝钢管与调质头精密焊接而成，外形及安装尺寸焊后再加工，确保承载负荷及同轴度的要求。
2. 抛丸室内辊道均装有可方便更换的中铬耐磨铸铁护套。辊轴两端采用锰钢耐磨材料迷宫式密封，彻底杜绝弹丸对两端轴承的磨损。
3. 采用进口HD耐磨锰钢，经过固溶回火处理，消除锰钢内部残余应力，适当降低锰钢丝硬度，提高其韧性和塑性。
4. 网带右侧安装1台驱动减速电机，与主动轴辊筒直连传动，带动网带和工件一起运行，采用变频调速，传动速度0.5—4m/min。
5. 主动轴下方安装有一根起导向和张紧作用的辊筒，当钢丝网带松动时，可通过此处机构张紧。
5光栅感应系统、自动上料系统/自动卸料系统
1. 2套光栅感应装置，分别安装于进料口与出料口，光栅密度可以根据工件大小选择，成对使用。
2. 当工件进入抛丸室时，进料口光栅会感应到来料工件，抛丸器会延时启动。在出料口会安装有光栅感应装置，当进、出料光栅感应到无工件出来时，流量阀会立即自动关闭，防止出现空抛现象。
6分选系统
1. 1套网筛分离器连接提升机，位于磁性分离器上端，细小的物料通过网筛过滤分离后被送入磁性分离器，粗大的物料及杂质通过网筛螺旋输送至尾部端口处，从端口出料管排出。
2. 用于精细分离合格丸料、破碎丸料及粉尘，保证丸料的均匀性。
3. 焊接结构，内部有多个精心设计的格室，用于风向导流。正面为可开启式检修门，用于日常观察和维护，门上设置有空气入口，为分离粉尘提供空气介质。
4. 多极挡板结构，可调节。用于调整下砂幕帘的均匀性。
5. 上下各安装了两个静止的磁铁，可以将合格丸料、碎钢丸精细分离，保证抛丸使用介质的均匀性。
6. 下面连接料仓，经分选后合格的丸料流经料仓进行储存，准备再次利用。
7电控箱
1. 采用西门子PLC和触摸屏
2. 采用siemens变频器调速
3. 采用施耐德品牌低压电气元件
4. 采用抛丸时间控制器
5. 采用亚德客系列气动元件
6. 采用流量检测电流表
7. 1盏照明灯
8. 1套专用恒温空调（可选配）
8除尘器
脉冲反吹系统
滤芯精密过滤系统
高效三级除尘
重新优化和升机的美国唐纳森除尘技术系统
标准配置： |
| 1 | 电器柜：本型号标准配置为散热扇，可选配空调 |
| 2 | 可编程控制器PLC：西门子（根据客户要求，可选配其他品牌） |
| 3 | 触摸屏：西门子（根据客户要求，可选配其他品牌） |
| 4 | 变频器：中国汇川（根据客户要求，可指定品牌，推荐我们国产，品质不低于西门子） |
| 5 | 电源电压：AC380V 三相五线 |
| 6 | 低压电器:施耐德（根据客户要求，可选配其他品牌） |
| 7 | 气动元件:ARITAC系列（根据客户要求，可选配其他品牌） |
| 8 | 电线电缆 |
| 9 | 淳九还可根据你的要求定制各种非标抛丸机。 |
青岛淳九机器控股有限公司下设三个子公司和一个国际事业部（Qingdao Knnjoo Inc.），是亚洲高端抛丸机制造商龙头企业,主要制造高端的抛丸机、喷丸设备、环保设备。公司引进和研发的一百多种喷抛喷丸清理强化机器, 有二十多种产品填补了国内空白, 产品应用于蒂森克虏伯、西门子、一汽大众、康明斯发动机、东风汽车、潍柴动力、济南重汽、中国高铁、庞巴迪、奇瑞汽车、北方奔驰、日立核工业、三一重工、富士重工、唐山齿轮、日本爱信、法国阿尔斯通、韩国斗山、美国卡特彼勒等知名企业,出口西班牙、法国、美国、韩国、日本、新加坡、澳洲、俄罗斯等全球49个国家,在全球及国内享有较高的声誉和口碑。
近几年，公司引进吸收了德国AGTOS等公司的先进技术，使我公司在产品设计方面达到了全球领先水平。公司研发的高效直连高效抛丸器作为亚洲的抛丸器代表获得欧美客户的赞誉和推荐。
公司在国内铸机业中较早获得国际IOS9001认证、德国TUV认证、欧盟CE认证、法国BV认证、北美FCC认证，并率先取得了企业进出口权,引进德国、美国等技术并进一步优化 ,使产品性能提高,加速淘汰落后技术,得到了全球国内外新老用户的肯定。
下一步？
备件与消耗
我们提供高品质，使用寿命更长的更换部件。作为行业内的大型备件供应商，我们可以在最短的时间内完成全球生产，以防止您需要大量库存或生产中断。
我们的高端抛丸器制造中心
设备升级
我们将随时向您分享最新的升级技术，以便您可以决定是否将最新的技术添加至您设备的日常维护中来获得最佳的使用寿命。
设备现代化升级
