Product OverviewThe wire meshbelt shot blasting machine utilizes a conveyor belt to transport workpieces; these belts are available in two types: steel wire mesh and wear-resistant
The wire meshbelt shot blasting machine utilizes a conveyor belt to transport workpieces; these belts are available in two types: steel wire mesh and wear-resistant rubber. The machine features a loading station at one end of the blast chamber and an unloading station at the other. During operation, parts are placed on the conveyor belt at the loading station and move continuously and steadily into the blast chamber for cleaning, after which they are removed at the unloading station. Key characteristics of this machine include continuous operation, the absence of part-to-part collisions, suitability for small-to-medium-sized components, and high-volume production capability. During the shot blasting operation, steel shot discharged from the blast wheel falls to the bottom of the blast chamber and is conveyed by a screw conveyor to the base of the elevator; the elevator's belt assembly then lifts the shot to a separator at the top. Powered by the dust collector, the separator sifts the reclaimed shot to remove fragments and dust generated during the process. Usable shot passes through the separator directly into the storage hopper above the blast wheel, ready for reuse.Broken steel shot is separated out and drops into a waste bin via a bypass pipe. Dust is directly extracted by the dust removal system and captured on the filter cartridges within the dust collection chamber; a pulse-jet cleaning system dislodges the dust, causing it to fall into a collection bin for timely disposal. (An optional wet dust collector is available: high-speed water mist is sprayed against the inner walls, flows into a collection tank to form sludge, and is subsequently discharged from the unit via a drainage mechanism.)
Applications
This type of equipment is generally suitable for parts requiring high-volume surface cleaning or for components where only a single surface needs to be treated. The wire mesh belt shot blasting machines are particularly well-suited for processing flat parts and certain components that are sensitive to impact.
Particularly suitable for the treatment of flat parts and certain parts susceptible to impact.
Transport workpieces of various sizes smoothly and safely during continuous production.
Provide efficient shot blasting operations for highly complex components.
Features
Continuous shot blasting treatment
Efficient shot blasting configuration
High manganese steel mesh belt
Capable of handling workpieces of various shapes.
High process reliability
Easy to integrate into existing production processes.
A wide range of equipment sizes and models is available.
Application
Rust and scale removal
Removal of casting flange burrs
Oil pan sand removal
Increase surface roughness
Shot peening improves the fatigue strength of workpieces.
Delivering efficient shot blasting operations for highly complex components in continuous production.
The KEEJOO Brand LBS wire mesh belt shot blasting machine delivers efficient shot blasting operations for highly complex components during continuous production.

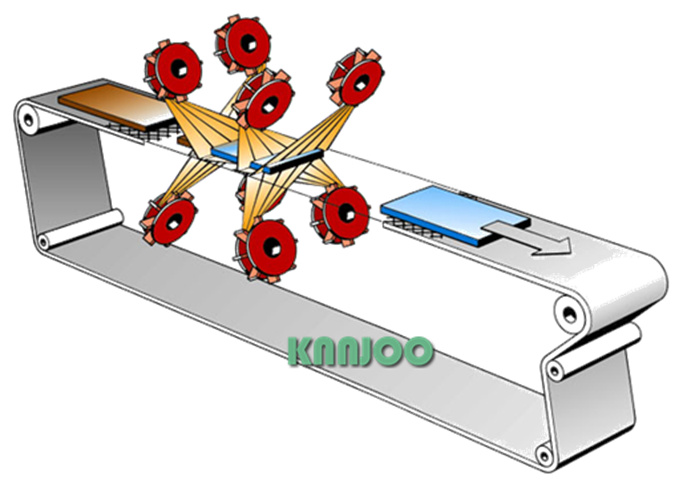

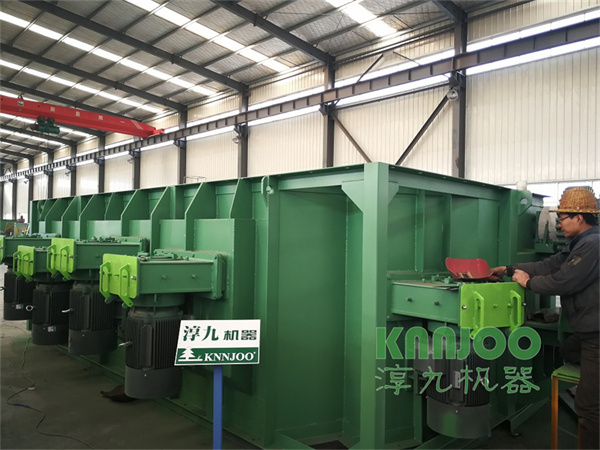

To achieve superior shot blasting results, four or eight blast wheels are mounted on horizontal and vertical axes and angled towards each other, ensuring full coverage of workpieces such as gearboxes, gears, die castings, castings, molded parts, and forgings.
The width of the conveyor belt allows for the stable and safe transport of workpieces of various sizes, including small parts. This equipment is particularly suitable for handling flat components and parts susceptible to impact damage, but it is not suitable for workpieces prone to rolling.
The Wire Mesh belt shot blasting machine for aluminum parts manufactured for Zhejiang Geely Automobile
Lightweight and flexible LBS wire mesh belt shot blasting machine, designed specifically for the aluminum industry.
The new WD units are designed, validated, and delivered by the Qingdao KEEJOO Brand Product Innovation Center in Metelen, Germany; they offer high flexibility and reliability for applications ranging from rust and scale removal to deburring and surface finishing. These units are particularly well-suited for the surface treatment of aluminum components.
WD 1000
Small-part continuous mesh-belt shot blasting machine manufactured for XCMG Group
Process
KEEJOO brand mesh-belt shot blasting machines can be seamlessly integrated into your production process. Workpieces are fed directly from the conveyor system for continuous shot blasting. A manganese steel mesh belt transports the workpieces into the blast chamber. High-efficiency blast wheels are positioned at specific angles, ensuring reliable shot blasting—even for complex shapes—as the parts pass continuously through the machine.
The number and power of the blast wheels, as well as the part throughput speed, can be selected based on the desired shot blasting effect to establish a processing speed that integrates seamlessly with your existing production line.
Shot blasting mode
The shot blasting chamber of this equipment is entirely made of manganese steel. The advantage of manganese steel is that it is very hard and durable. The hardness increases from 35HRC to 50HRC or even more after the impact of round steel shot, so it has very good wear resistance.
In the "hot zone" where the shot material directly impacts, the shot blasting chamber is additionally equipped with a 10mm thick manganese steel wear-resistant liner, almost creating an additional internal shot blasting chamber. These liners are easy to replace and can be fixed in a variety of ways (screwing, connecting, hanging, etc.).

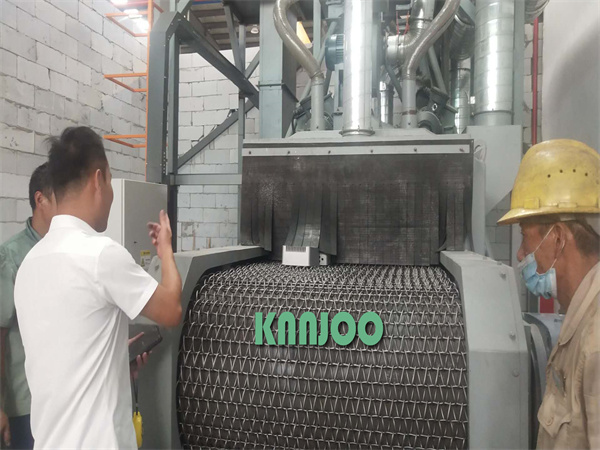

To prevent shot from scattering, the equipment is fitted with multi-layer rubber curtains. In the "hot zone," KGS curtains are used; these slide along V-shaped rails and are easy to replace.

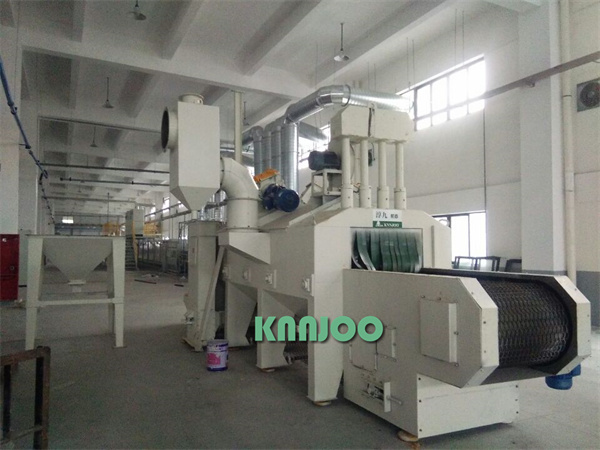

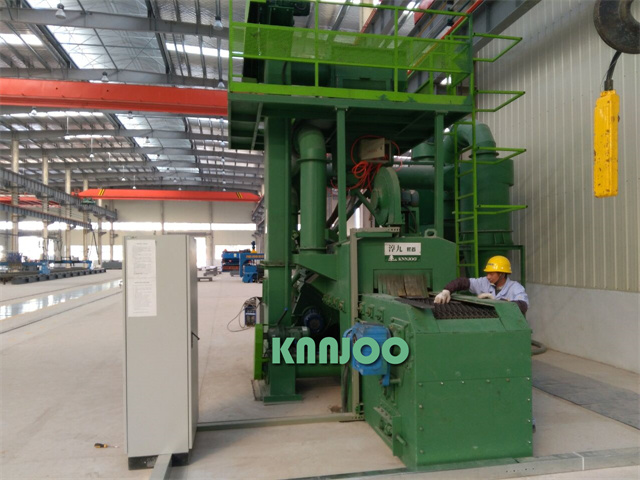

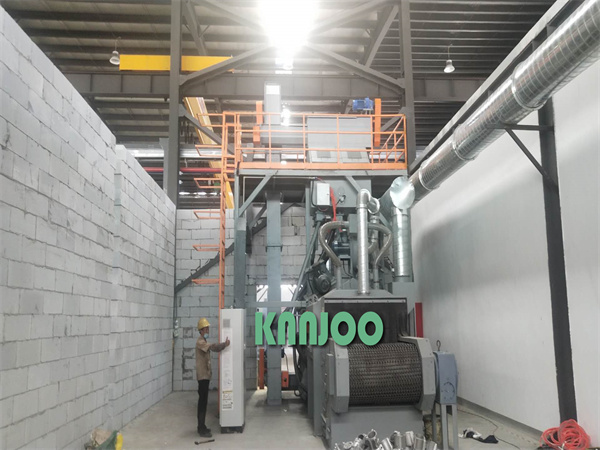

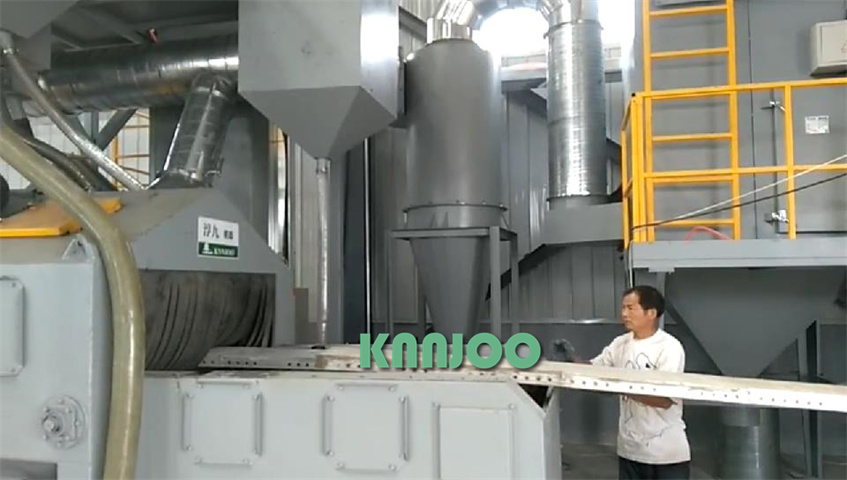

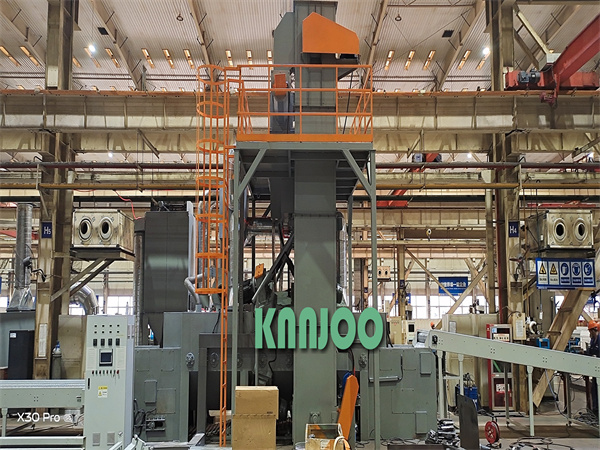

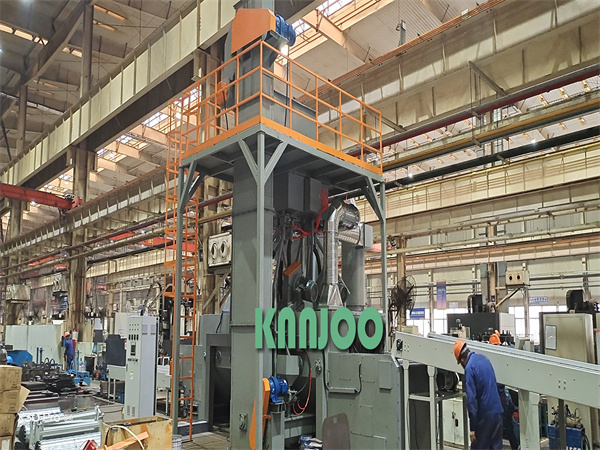

Workshop-manufactured wire mesh belt shot blasting machine
Features and Options

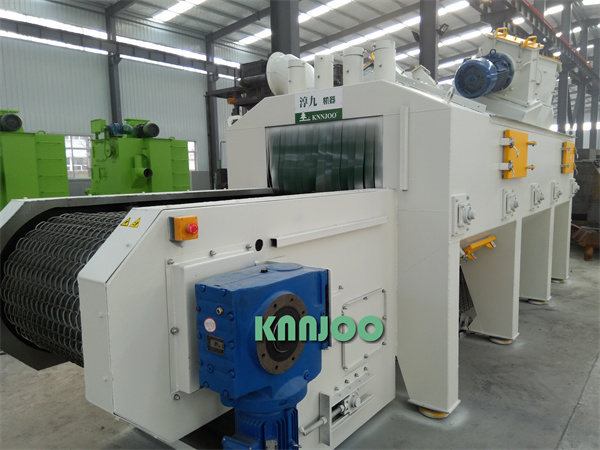

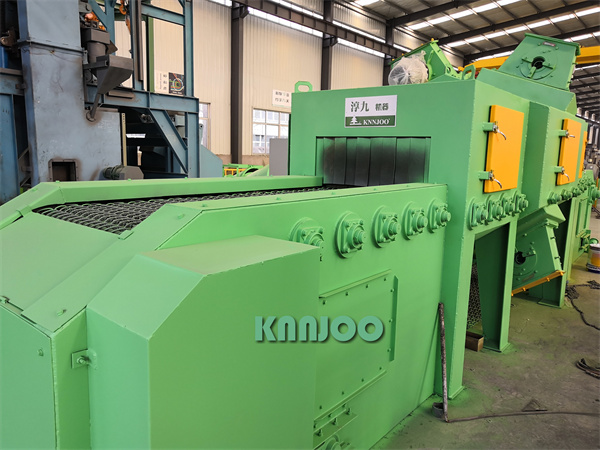

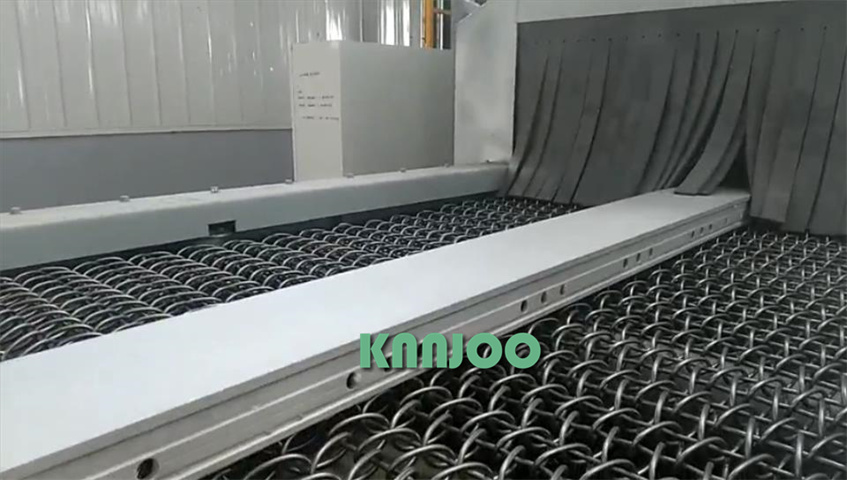

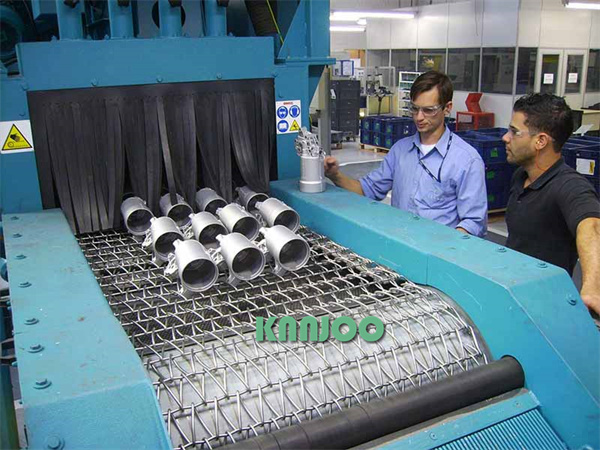

Wire mesh belt

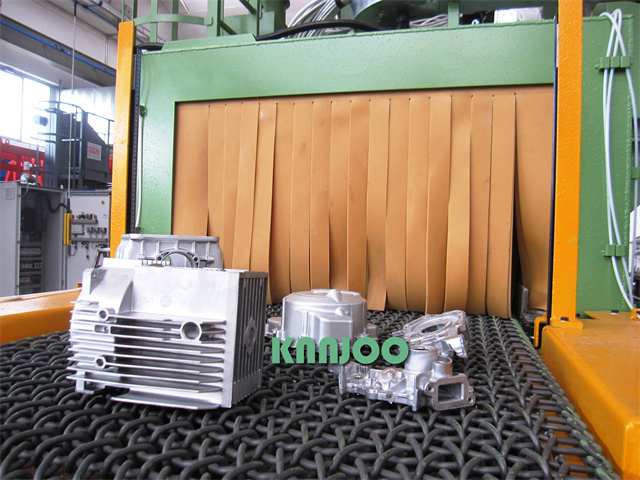

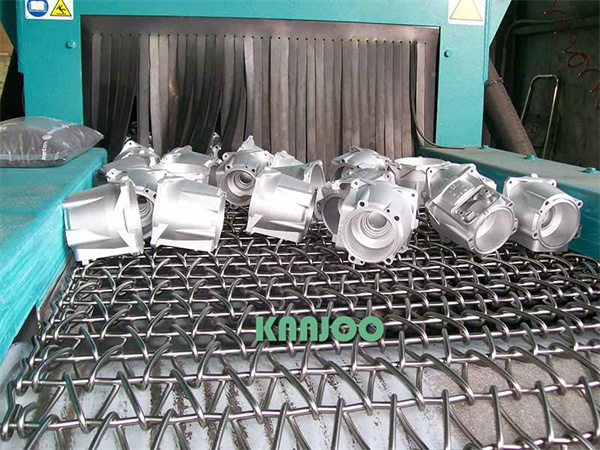

One advantage of mesh belts is that they can continuously convey and process parts of various sizes. Qingdao KEEJOO Group uses hardened manganese steel strips as standard.
Features: Hardened manganese steel offers high wear resistance, ensuring long maintenance intervals and replacement cycles. A range of mesh belt widths accommodates various workpieces and shot blasting applications. Thanks to the fully automatic pneumatic tensioning system, the belt maintains the required tension throughout its entire service life without the need for manual intervention.
Shot Cleaning Station
As an option, a shot cleaning station can be installed before the workpiece is transferred to the subsequent production process.
At the shot removal station, shot-blasted components are selected and rotated 360° to dislodge any shot trapped in internal cavities or recesses. The recovered shot is returned to the shot-blasting machine. The components are then conveyed to a chute for unloading or transferred to the next processing stage. This system can also be integrated into fully automated production lines.
Shot cleaning
During the shot blasting process, dust, broken shot, and other solid particles or contaminants (particulates) are generated from the rust and scale removed from the workpiece. These particulates are separated within the shot recovery unit, which can be adjusted according to the specific type and size of the shot blasting media.

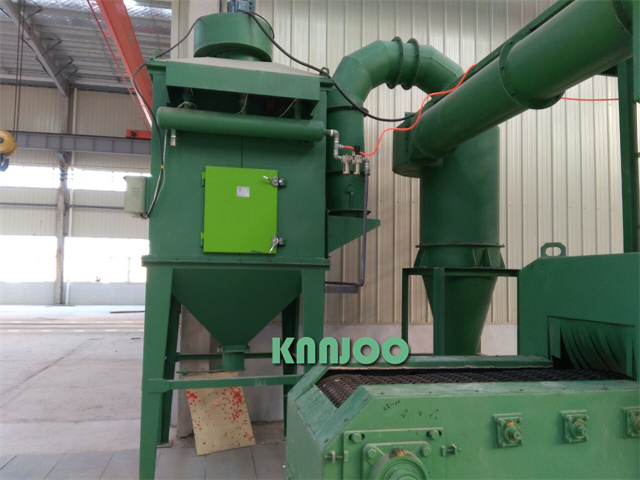

The abrasive recovery unit consists of an impact separator and a cartridge dust collector. The impact separator removes particles from the abrasive and serves as a certified spark trap compliant with ATEX regulations.
The cartridge dust collector generates the necessary negative pressure to remove dust and can be installed independently next to the shot blasting machine. It features automatic cleaning via compressed air pulses, with adjustable intensity and duration. All components of the dust collector are fire-resistant. Alternatively, a wet dust collection unit may be used; this method is frequently employed in aluminum alloy die-casting.

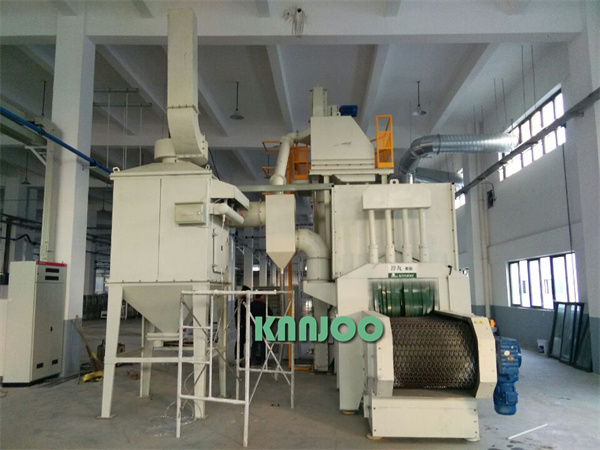

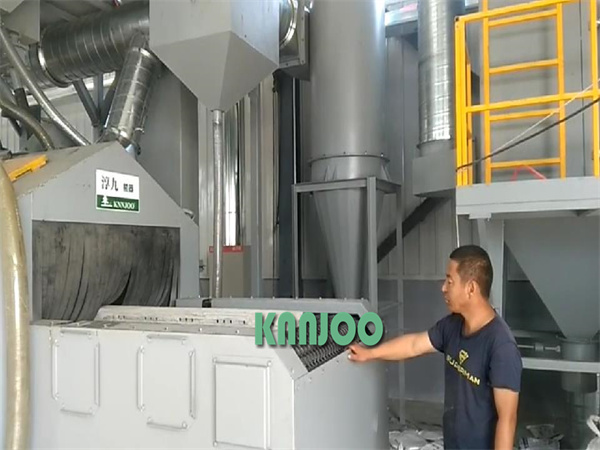

Wire mesh belt shot blasting machine manufactured for Hangxiao Steel Structure
Magnetic separator
Magnetic separators boost your profitability by reducing equipment wear and shot consumption. Molding and core sands adhering to castings are removed during the shot blasting process; because these sands cause significant wear, they must be quickly and effectively separated from the ferromagnetic shot—a task performed by the magnetic separator.
The magnetic separator utilizes a drum equipped with two adjustable magnetic zones and a screening box to separate molding sand, core sand, and granules from reusable shot, leaving a residue content of only 0.2%. This effectively reduces wear and shot consumption, leading to higher profitability for your operations.
Technical Specifications
Model
WD 800
WD 1000
WD 1800
WD 1500
WD 1250
Max workpiece width (mm)
800
1000
1800
1500
1250
Max workpiece height (mm)
400
500
500
500
500
No. of blast wheel
4
4
10
10
8
Power of a single shot blasting wheel (kW)
7.5 (11)
7.5 (11)
11 (15)
7.5 (11)
18.5 (22)
This machine is equipped with the HAI Ocean Surge® direct-coupled high-efficiency blast wheel (German design with independent patents, Patent No.: ZL 2015 2 0702933.5).

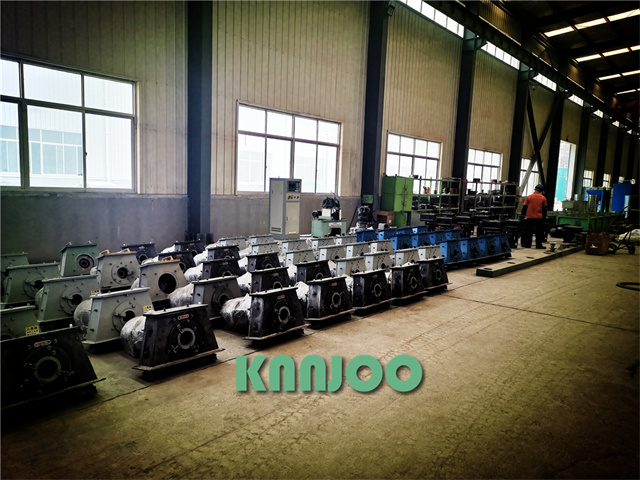

The blast wheel serves as the core of a shot blasting machine, and its design dictates the overall equipment performance. The HAI Ocean Surge® blast wheel comes as standard for this unit. The H-series blast wheels deliver superior blasting performance. Available in multiple sizes and material options, H blast wheels enable flexible application across diverse manufacturing processes.The casing is lined with curved, multi-layer labyrinth-style sealing plates; the hot zone features a thickness of 70mm, ensuring excellent sealing performance and a uniform distribution of the projected abrasive media over an expanded coverage area. The internal design allows for the adjustment of abrasive trajectories, thereby enhancing blasting efficiency and minimizing self-wear. Additionally, a specialized dynamic design boosts efficiency by 30% compared to standard blast wheels.
Selected Cases of KEEJOO Type Shot Blasting Machines
Wire mesh Belt Shot Blasting Machine Manufactured for Cummins Engine Company
Wire Mesh Belt Overhead Chain Shot Blasting Machine Manufactured for Siemens
Wire Mesh Belt Through-type Shot Blasting Machine for Doosan Heavy Industries
Wire Mesh Belt Shot Blasting Machine Manufactured for Komatsu Shantui
wire Mesh Belt Through-type Shot Blasting Machine Manufactured for Shandong Construction Machinery Factory
Large Wire Mesh Belt Shot Blasting Machine Manufactured for Caterpillar (USA)
Wire Mesh Belt Shot Blasting Machine for Fans Manufactured for Will Colette
Large Nuclear Power Special Shot Blasting Machine Manufactured for Shentong Valve
We have supplied over 1,000 sets of mesh belt shot blasting machines to domestic and overseas clients to date, ranking far ahead in the industry.
......
A large listed domestic agricultural equipment group phased out all its outdated shot blasting machines in the past two years and fully adopted units independently developed and manufactured by Qingdao KEEJOO Group. Up to now, the total quantity installed has reached as many as 58 sets.......
The various shot blasting machines manufactured by Qingdao KEEJOO Group for European clients are highly acclaimed and well-received.
Introduction to the Components of the Shot Blasting Machine

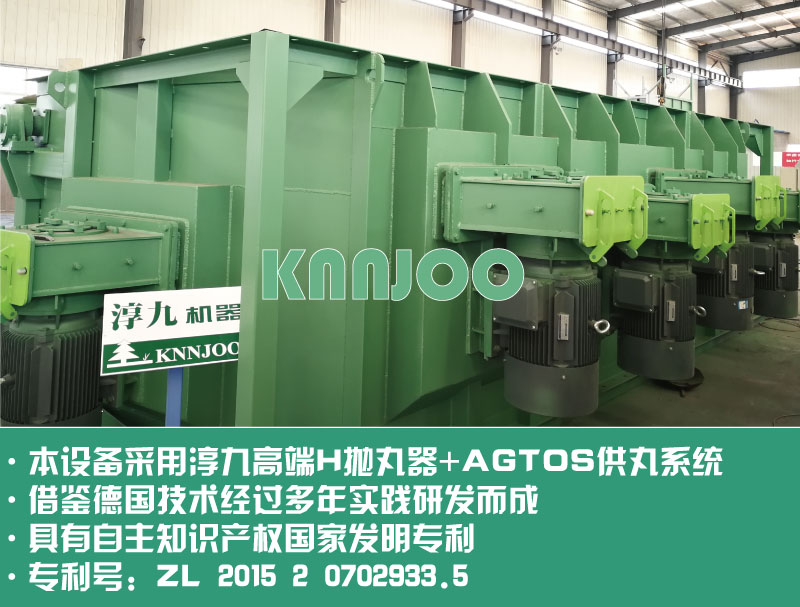

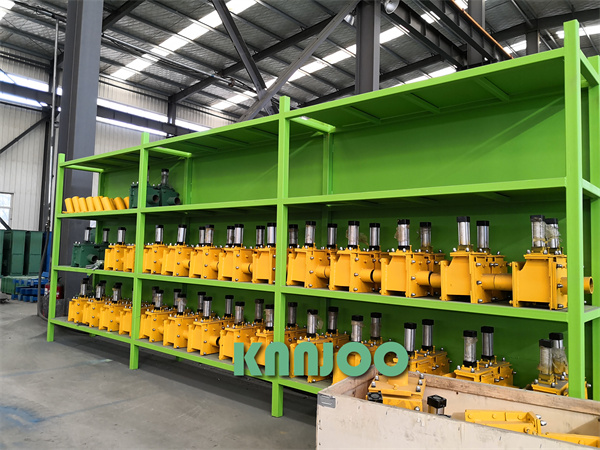

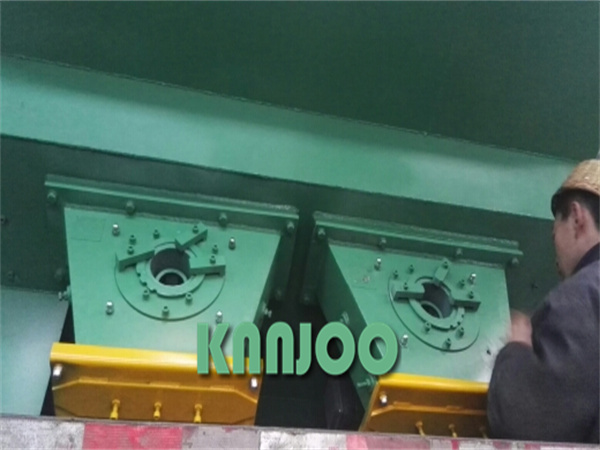

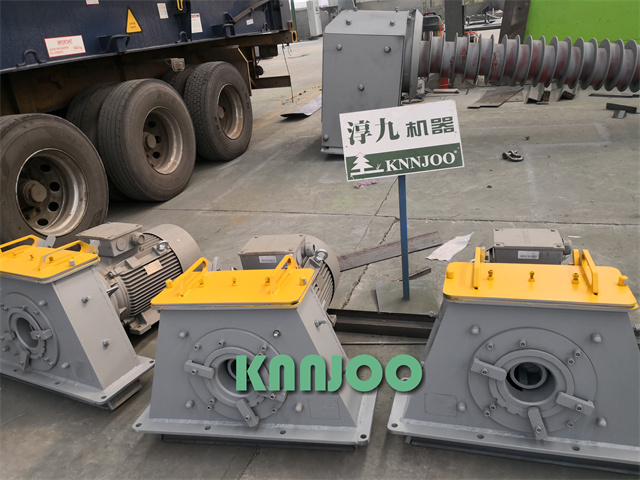

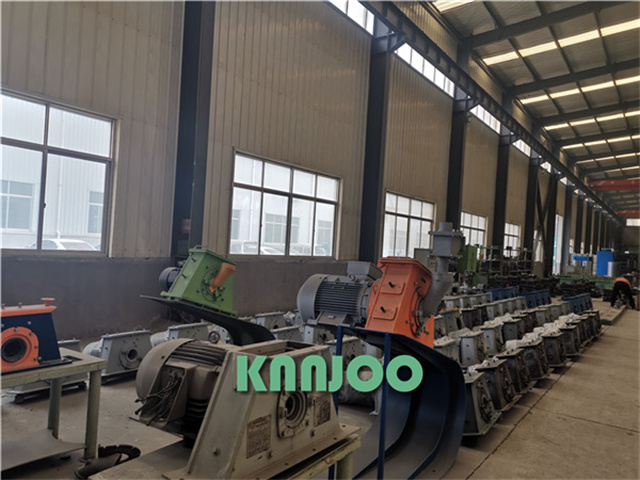

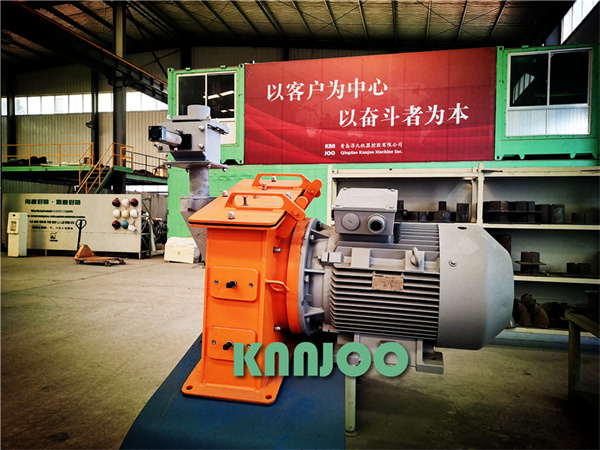

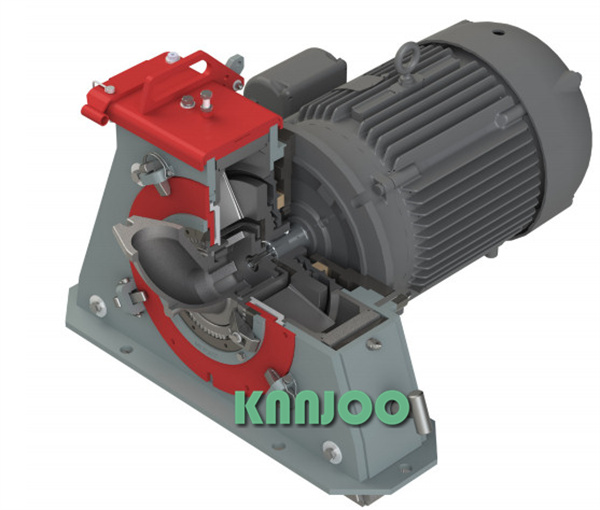

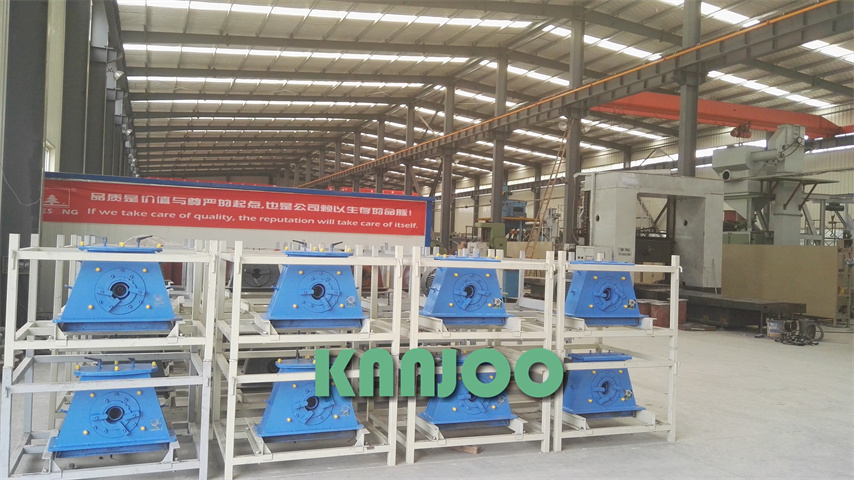

1Blast wheel
1 The shot blasting unit and motor utilize high-efficiency HP technology developed in collaboration with Germany; compared to traditional units, this design minimizes frictional losses, thereby boosting motor efficiency by 20%, reducing potential failure points, and cutting maintenance costs by 50%.
2 Compared to traditional units, the design is more compact, allows for flexible angular positioning, and facilitates easier maintenance.
3 Unlike traditional units, this system delivers consistent shot blasting performance, ensuring stable cleaning quality.
4 Blades and wear-resistant components are manufactured in Taiwan using high-chromium investment casting; they offer superior wear resistance with a service life of approximately 1,200–4,000 hours—three to four times that of standard casting materials.
5 Shot blasting impeller: The impeller is made of wear-resistant alloy subjected to carburizing treatment. The impeller body is precision-machined in a single operation using a high-precision CNC machining center; this ensures high dimensional accuracy and balanced high-speed operation, resulting in low vibration, low noise, and extended service life.
6 Bearings are sourced from SKF (Sweden).
7 The motor is supplied by Siemens (Germany).
8 German Schenck dynamic balancing equipment is used to ensure precise high-speed dynamic balance of the impeller body.

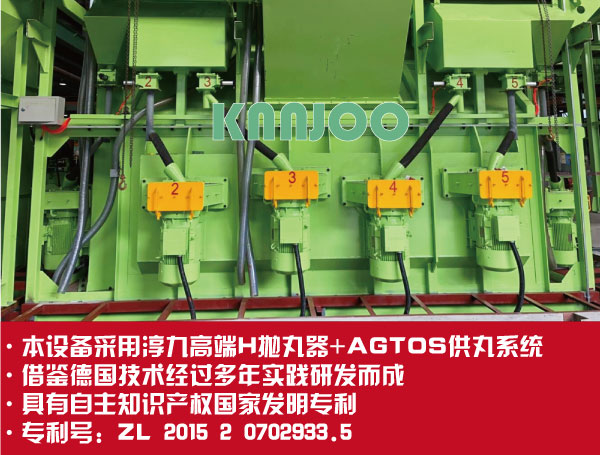

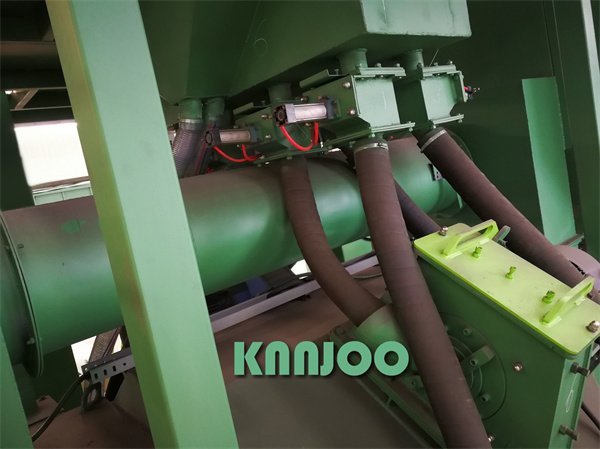

2 Abrasive flow valve
1. Semi-automatic flow control system for regulating the flow of abrasive media into the blast wheel, featuring manual adjustment of the steel shot flow rate.
2. Fully sealed structural design, featuring a lockable inspection opening and equipped with two bearings.
3. A manual shut-off valve is installed above each flow valve; this can be closed to stop the flow of media from the hopper, thereby facilitating maintenance of the flow valve.
3Blasting chamber
1. The shot blasting chamber is constructed from welded manganese steel.
2. Manganese steel protective plates are installed in the "hot zone" of the chamber—specifically covering three-quarters of the area directly exposed to the blast stream—to prevent steel shot from striking the chamber's outer walls; these plates are suspended for easy installation, removal, and replacement.
3. A three-layer sealing structure is installed at the top to prevent steel shot from leaking out during the blasting process.
4Imported HD600 wear-resistant steel mesh belt conveyor system with automatic variable-frequency speed control.
1. The conveyor system consists of dozens of carbon steel rollers, sprockets, chains, mesh belts, bearings and other transmission components. The roller conveyor is divided into three sections: feeding section, blasting section and discharging section. All rollers are precisely welded with high-quality seamless carbon steel tubes and quenched & tempered heads. Their outline and mounting dimensions are machined post welding to meet requirements for load capacity and coaxiality.
2. Rollers inside the blasting chamber are all fitted with easily replaceable medium-chromium wear-resistant cast iron sleeves. Manganese steel wear-resistant labyrinth seals are adopted at both ends of each roller shaft, completely eliminating abrasive wear on the end bearings caused by blasting media.
3. Imported HD wear-resistant manganese steel is used, treated with solution annealing and tempering to eliminate residual internal stress of manganese steel. This moderately reduces the hardness of manganese steel wire while improving its toughness and plasticity.
4. One drive reduction motor is mounted on the right side of the mesh belt, directly coupled to the driving roller shaft to drive the mesh belt and workpieces synchronously. Variable frequency speed regulation is equipped, with a conveying speed range of 0.5–4 m/min.
5. A guide and tension roller is installed beneath the driving shaft. The mechanism at this position can tension the steel wire mesh belt when it becomes loose.

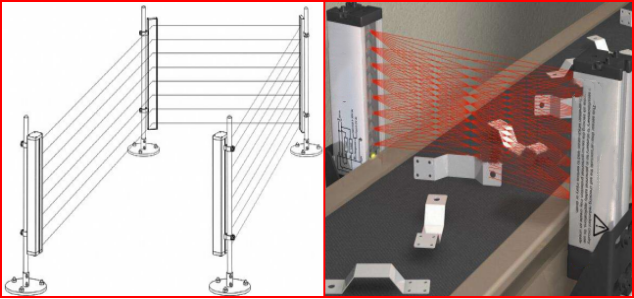

5Light curtain sensing system, automatic loading system/automatic unloading system
1. Two sets of light curtain sensing units are installed at the infeed and outfeed points, respectively; used in pairs, the light curtain resolution can be selected based on workpiece size.
2. As a workpiece enters the shot blasting chamber, a light curtain at the inlet detects its presence, triggering the shot blasting units to start after a brief delay. A light curtain sensor is also installed at the outlet; when the sensors at both the inlet and outlet detect no workpieces, the flow valve automatically closes immediately to prevent "air blasting" (blasting without a workpiece present).
1.Charging door
The charging door is constructed from welded steel and features a high-manganese steel protective plate with a labyrinth-style guard design. It is driven by an electric trolley with a link chain (equipped with a safety pin) and includes a detection switch to monitor the door's position.
2.Feeding machine
The charging machine consists of a support frame, a carriage, and a link-chain drive mechanism. Protective plates are mounted on both sides of the frame, with control buttons installed on one side. The frame supports a pivoting arm; when the drive mechanism is activated, the material hopper ascends along the internal channel of the arm. Simultaneously, the arm rotates around its pivot point, causing the hopper—during its ascent and rotation—to tilt toward the cleaner's feed opening and discharge the material into the drum.
A rotary proximity switch is located at the drive shaft end to limit the upper travel limit of the hopper, while a proximity switch signals the completion of the movement once the hopper has descended.
Discharge system
1. An automatic unloading mechanism: after shot blasting, the workpieces are discharged from the blasting chamber onto the unloading mechanism, and a vibration device then conveys the parts into a collection bin.
2. The unloading mechanism is fitted with shock-absorbing rubber pads that effectively prevent impact between the parts and the shock-absorbing plate, providing excellent protection.
6 Sorting system
1. A mesh screen separator is connected to the elevator and positioned above the magnetic separator; fine material passes through the screen into the magnetic separator, while coarse material and impurities are conveyed by a spiral mechanism along the screen to the discharge port at the rear.
2. It is designed to finely separate usable shot, broken shot, and dust, ensuring the uniformity of the shot media.
3.Featuring a welded structure, the interior contains multiple carefully designed compartments for airflow guidance. An access door on the front allows for routine inspection and maintenance; this door is equipped with an air inlet to provide the necessary airflow for dust separation.
4. An adjustable multi-vane baffle structure is used to regulate the uniformity of the falling abrasive curtain.
5. Stationary magnets installed at both the top and bottom enable the fine separation of usable shot from broken steel shot, ensuring the consistency of the blast media.
6. A storage hopper is connected at the bottom; after separation, the usable shot flows into the hopper for storage and subsequent reuse.
7

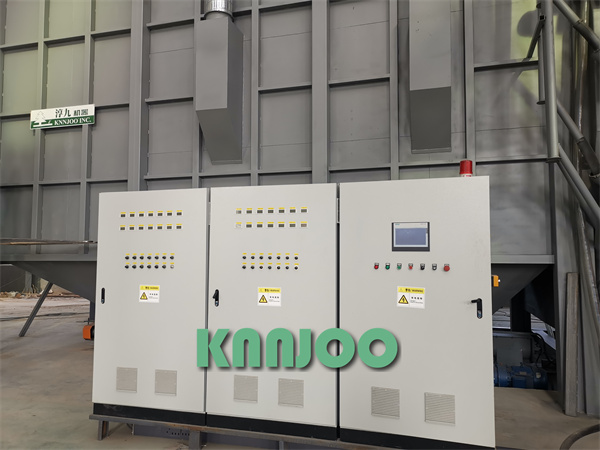

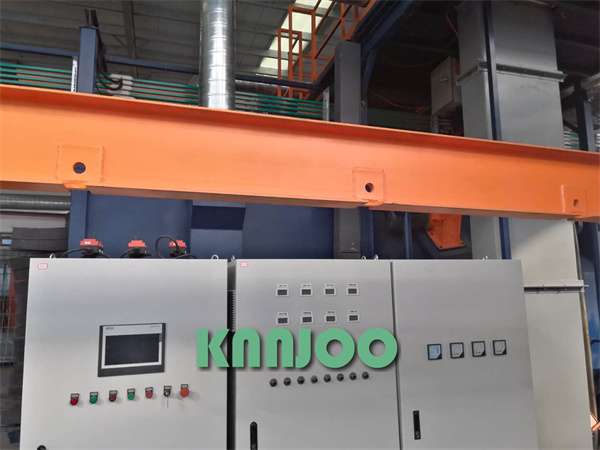

Electrical control cabinet
1. Siemens PLC and touch screen
2. Siemens variable frequency drive (VFD) for speed control
3. Schneider low-voltage electrical components
4. Shot blasting time controller
5. AirTAC pneumatic components
6. Ammeter for flow monitoring
7. 1 lighting fixture
8. Dedicated constant-temperature air conditioning unit (optional)
Standard configuration：
1
Electrical cabinet: This model comes standard with a cooling fan; air conditioning is available as an option.
2
Programmable Logic Controller (PLC): Siemens (other brands available as options upon customer request)
3
Touchscreen: Siemens (other brands available as options upon customer request)
4
Variable Frequency Drive (VFD): Inovance (China) — (Specific brands can be designated upon customer request; we recommend our domestic brand, as its quality is on par with or superior to Siemens.)
5
Power supply voltage: AC 380V, three-phase five-wire system
6
Low-voltage electrical components: Schneider (other brands available upon customer request)
7
Pneumatic components: ARITAC series (other brands available upon customer request)
8
Wires and cables
9
Qingdao KEEJOO Group can also customize various non-standard shot blasting machines according to your requirem
Specifications（Case Study WD60、75、80、120、150、180）
WD80 Wire Mesh Belt Shot Blasting Machine: Specifications and Configuration List
No.
Name
Wire Mesh belt shot blasting machine
1
Model
WD60/WD75/WD80
2
Separation Configuration
Air separation
3
Application
Cleaning of workpieces such as pipes, rods, and special profiles that are unsuitable for tumbling.
4
Blast Wheel Type
German-style high-efficiency direct-drive shaft
5
No. of Blast wheel
4-12个
6
Blast wheel motor power
7.5-11-15KW/set
7
Wire mesh belt
Imported from the Netherlands, pitch: 50–70 mm, Φ6.5 × 1 m × 16.22 m
8
Load Capacity (excluding tooling)
≤100kg
9
Dimensions of a single workpiece (width × height × length)
≤1062*300*1500mm
10
Max. Inlet Size (Width × Height)
1062*300mm
11
Semi-automatic Flow Valve
4-16 set
12
Fully Automatic Flow Valve
Optional
13
Dry Dust Collector
Optional
14
Wet Dust Collector
KKC80
15
Airflow (m³/h)
≤8000-12000
16
Overall Dimension of Bare Machine (L × W × H)
7800*3080*5829mm
17
Overall Dimension Including Dust Collector (L × W × H)
11398*6180*5829mm
18
Total Power (Including Dust Collector)
≤55.1KW+15.12KW-≤105KW+37KW
Qingdao KEEJOO Group comprises three subsidiaries and an international business division, standing as a leading Asian manufacturer of high-end shot blasting and peening machinery, as well as environmental protection equipment. The company has introduced and developed over 100 types of shot blasting and peening machines for cleaning and surface strengthening; more than 20 of these products have filled gaps in the domestic market. Its products are utilized by renowned enterprises such as ThyssenKrupp, Siemens, FAW-Volkswagen, Cummins Engine, Dongfeng Motor, Weichai Power, Sinotruk (Jinan), China High-Speed Rail, Bombardier, Chery Automobile, North Benz, Hitachi Nuclear, Sany Heavy Industry, Fuji Heavy Industries, Tangshan Gear, Aisin (Japan), Alstom (France), Doosan (South Korea), and Caterpillar (USA). With exports reaching 49 countries—including Spain, France, the USA, South Korea, Japan, Singapore, Australia, and Russia—the company enjoys an excellent global and domestic reputation.
In recent years, by introducing and assimilating advanced technologies from companies such as Germany's AGTOS, KEEJOO has achieved a world-class level in product design. The company's high-efficiency, direct-drive shot blasting wheel—representing the best of Asian technology in this field—has garnered praise and recommendations from customers in Europe and the Americas.
The company was among the first in China's casting machinery industry to obtain ISO 9001, German TÜV, EU CE, French BV, and North American FCC certifications, as well as import-export rights. By introducing and further optimizing technologies from Germany, the United States, and other regions, the company has enhanced product performance and accelerated the phase-out of outdated technologies, earning recognition from new and existing customers worldwide.
