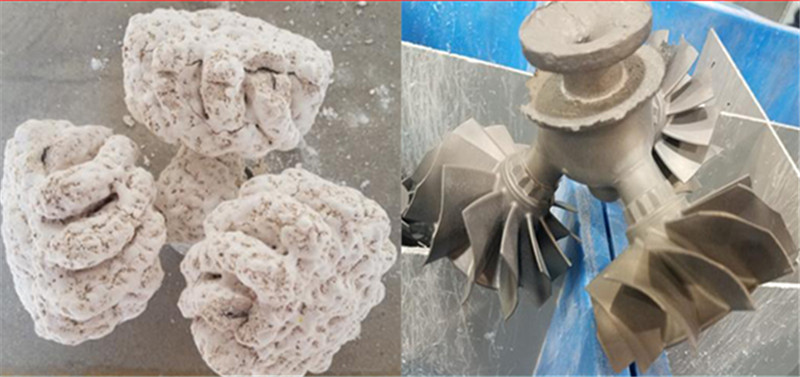

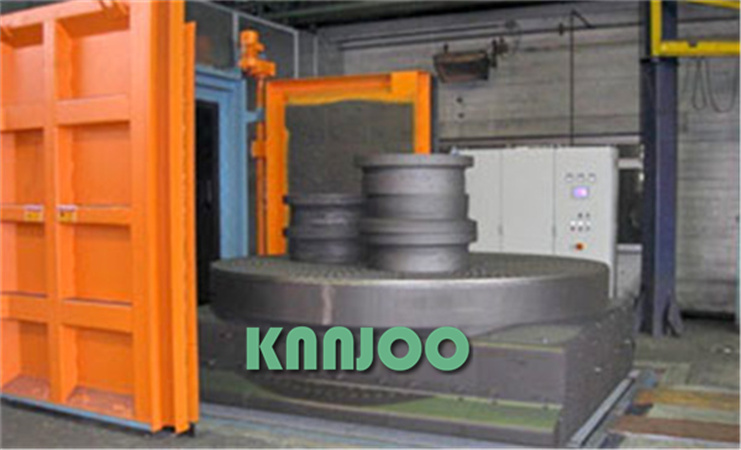

The rotary-table shot blasting machine is primarily used for the surface cleaning of forgings, large castings, or structural components. It employs a high-speed rotating impeller within the blast unit to accelerate and propel abrasive media against the workpiece surface, creating an impact and scraping effect. This process not only removes molding sand, scale, rust, and contaminants but also relieves surface stress, enhances fatigue strength, and improves paint film adhesion, ultimately elevating the overall surface and internal quality of the workpiece.
Features
Extremely robust design capable of withstanding intense vibration; fully self-contained unit featuring a dust collector, separator, and cartridge filtration system. Requires no foundation or additional ductwork. Equipped with high-performance (HP) blast wheels or an optional 8-wheel KH system. Clamshell door design facilitates easy loading via truck or crane. Features fully safe interlocking mechanisms and automatic operation. Low noise levels; heavy-duty construction suitable for the most demanding environmental conditions. Delivery within 9–15 weeks.
The large rotary-table shot blasting machine is an ideal and indispensable component for cleaning, deburring, and finishing operations within a fully automated unit.
Easy to integrate, enabling fully automated production from casting through to finishing.

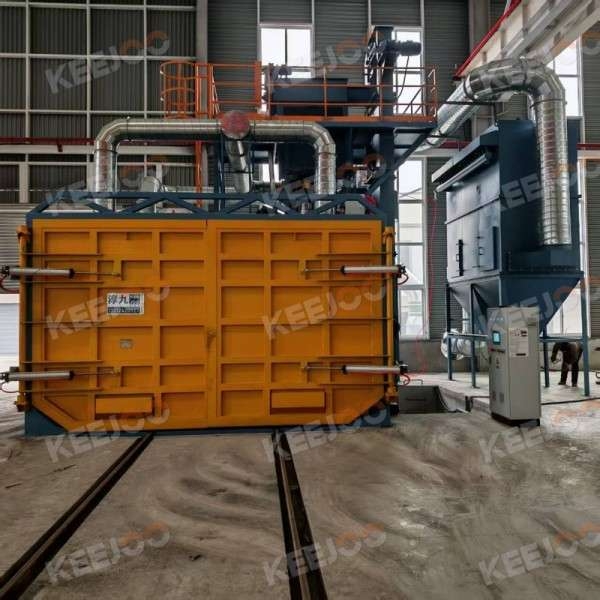

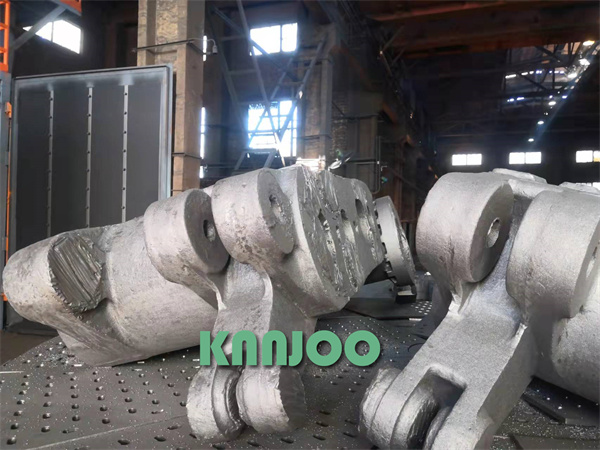

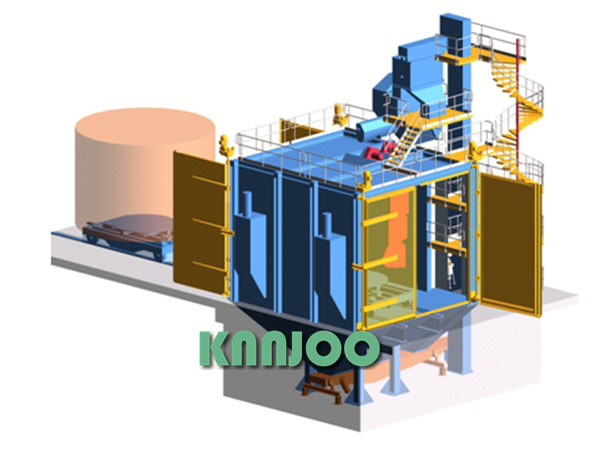

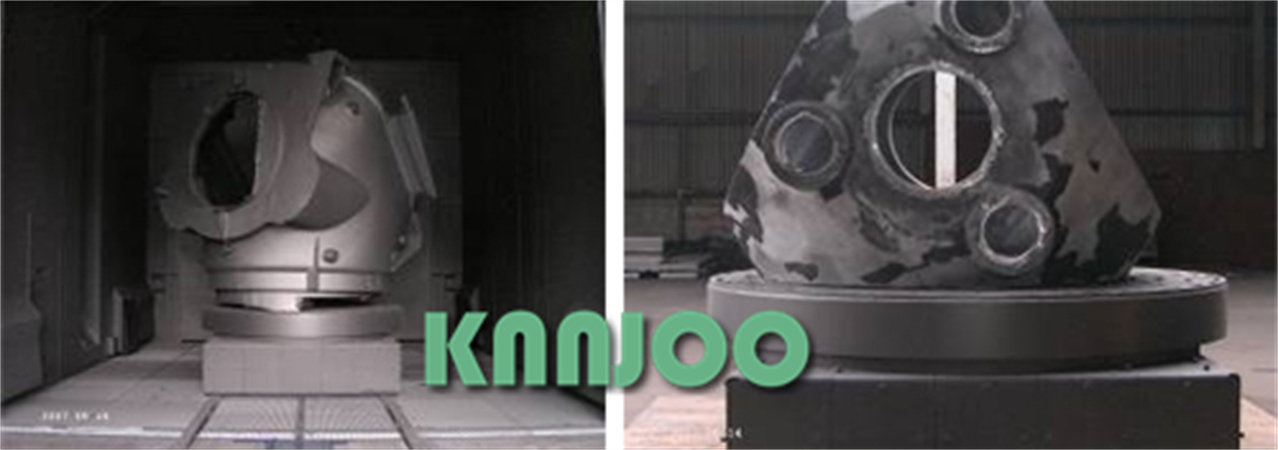

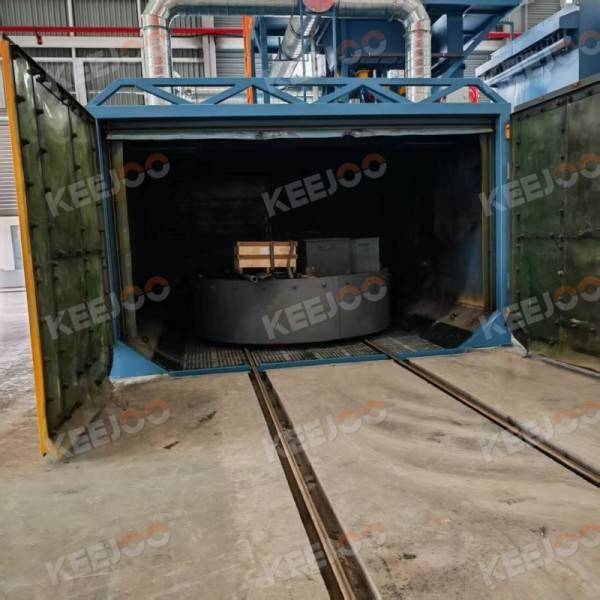

Large castings or forgings. The rotary-trolley shot blasting machine is primarily used for the surface cleaning of large castings or structural components. It employs a shot blasting unit with a high-speed rotating impeller to accelerate and propel abrasive media against the workpiece surface, creating an impact and scraping effect. This process not only removes molding sand, scale, rust, and contaminants but also relieves surface stress, enhances fatigue strength, and improves paint film adhesion, ultimately elevating the overall surface and internal quality of the workpiece.

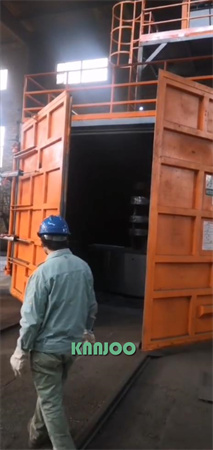

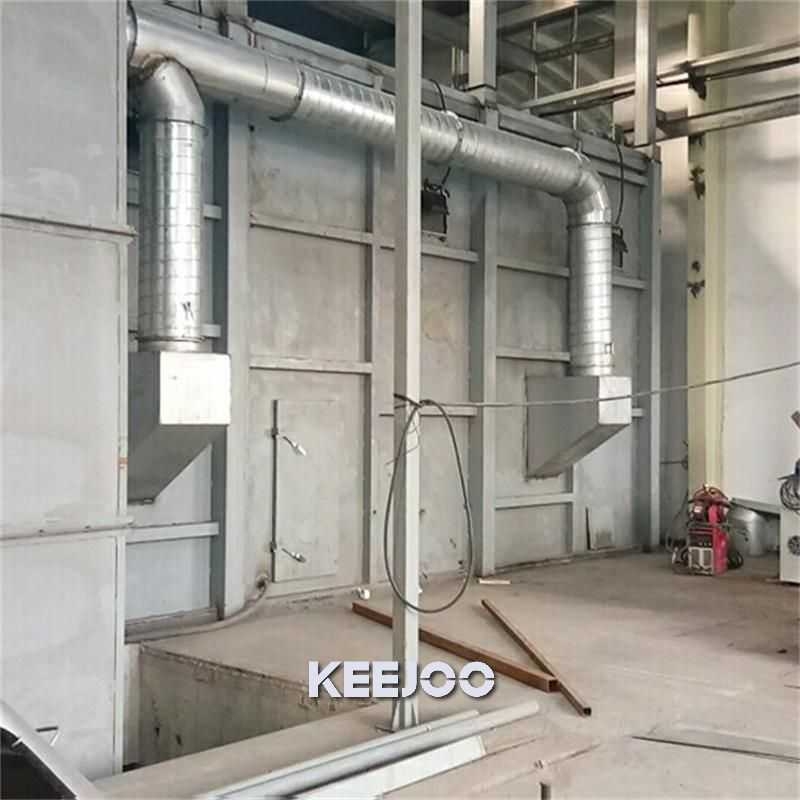

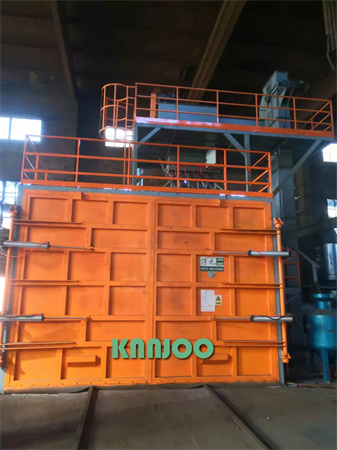

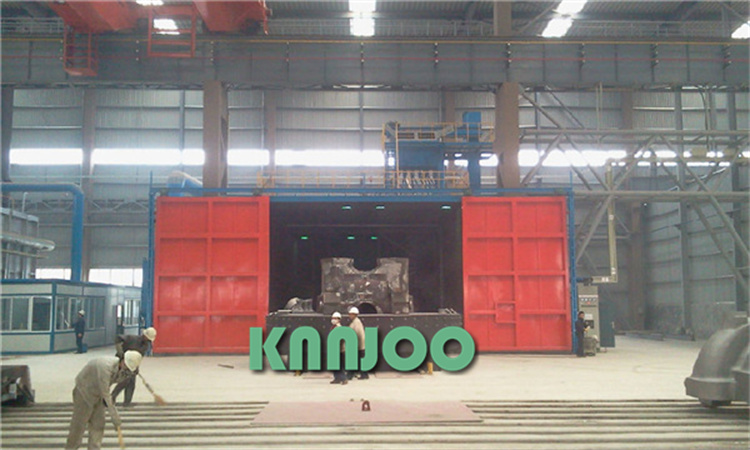

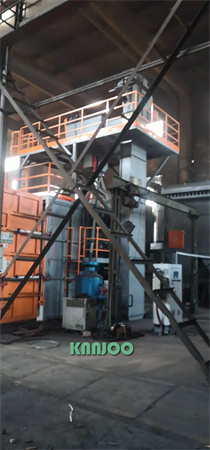

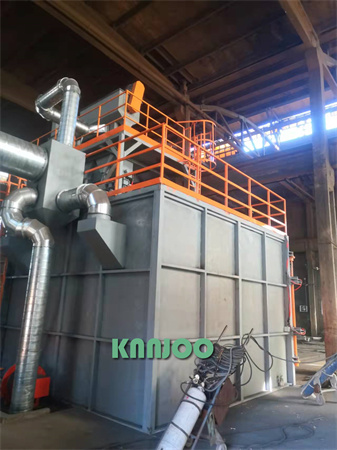

Large rotary-table shot blasting machine for the Chinese metallurgical manufacturing industry.
Technical Specifications* (Designed and manufactured according to the workpiece)
Model
| TC 1000/610 | TC 1500/650 | TC 1500/1000 | TC 2000/1220 |
| Max turntable diagonal length (mm) | 3000 | 3500 | 4500 | 7000 |
| Turntable operating height (mm) | 1725 | 2750 | 2750 | 3760 |
| Max workpiece weight (kg) | 5000 | 50000 | 100000 | 120000 |
| Max workpiece height (mm) | 610 | 650 | 1000 | 1220 |
| No.of blast wheel | 5 | 6 | 7 | 10 |
| Single Blast Wheel Power (kW) | 30 | 30 | 45 | 45 |
| Total Rotary Table Height (mm) | 3050 | 3640 | 4310 | 5200 |
| Rotary Table Speed | 6 rpm* | 2.7 rpm* | 2.7 rpm* | 3 rpm* |
| Rotary Table Material | Manganese steel | Manganese steel | Manganese steel | Manganese steel |
| Single / Double Door | Double | Double | Double | Double |
* Revolutions per minute
Product Overview
Rotary-table shot blasting machines utilize a turntable to carry workpieces; common table diameters include 1200 mm, 1600 mm, 1800 mm, and 2500 mm. Depending on specific requirements, these machines may be equipped with one or multiple blast wheels and can operate in either continuous or intermittent modes. The operating principle involves placing workpieces on the turntable (spaced apart to prevent contact or collision) and rotating them into the blast zone for cleaning; once the table rotates back to the loading/unloading position, the workpieces can be removed. Consequently, this type of machine is best suited for workpieces where one side does not require cleaning—otherwise, the parts would need to be flipped over for a second pass. However, Chunjiu’s rotary-table hook-type shot blasting machine features both a turntable and a rotating hook mechanism, making it ideal for high-standard surface treatment applications.
Applications
Surface cleaning or strengthening of small- to medium-sized castings and forgings for industries such as gears, gear shafts, forging, casting, construction, chemicals, electric motors, and machine tools—including processes like descaling, deburring, and sand removal from sand castings.
Key advantages
Features a body and protective liners made entirely of manganese steel, ensuring a 20-year service life; utilizes an advanced Venturi dust removal system; employs a two-stage separation system for broken shot; incorporates a high-performance ABB motor and H-series blast wheel; uses an automatic steel shot flow control system; features an automatic turntable system; and utilizes a combination of magnetic separation, transverse screw separation, and air separation systems.

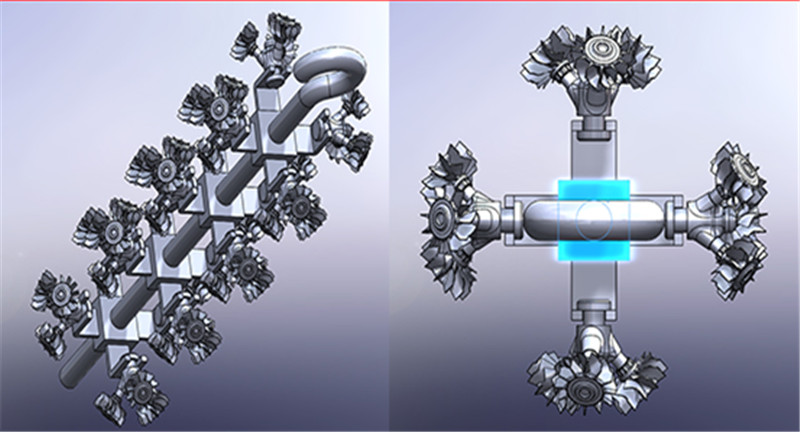

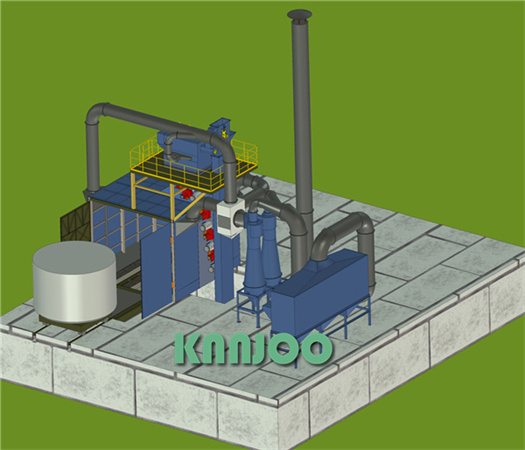

The rotary-table shot blasting machine utilizes a turntable to support the workpieces; available models are categorized by turntable diameter, such as φ2000 mm, φ3000 mm, φ4000 mm, and φ5000 mm. Depending on specific requirements, these machines may be equipped with 4, 6, or 10 blast wheels and can operate in either continuous or intermittent modes.

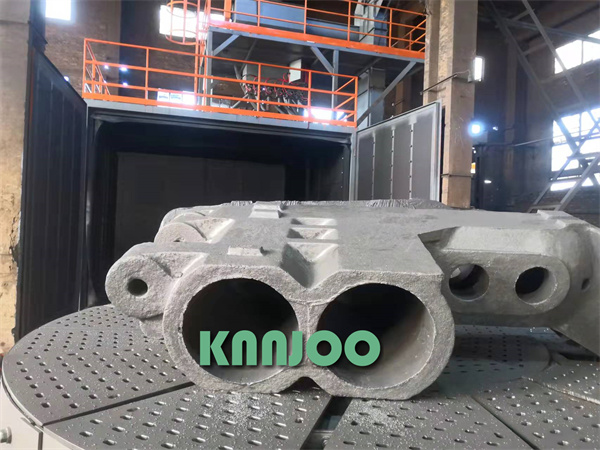

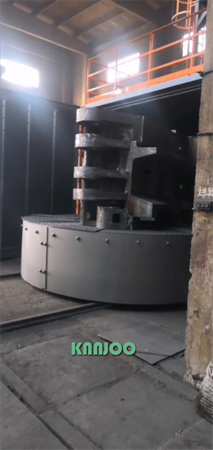

Its operating principle is as follows: Workpieces are placed on a turntable (spaced apart to prevent contact or collision) and carried into the blasting zone for shot blasting; once the turntable rotates to the unloading position, the workpieces can be removed. Consequently, this type of machine is best suited for workpieces requiring treatment on only one side; otherwise, the workpieces would need to be flipped over for a second pass. However, Chunjiu’s turntable-and-hook shot blasting machine features both a turntable and hooks—with the hooks capable of rotation—making it suitable for high-standard surface treatment applications. During the blasting process, steel shot falls onto the turntable surface and the bottom of the blasting chamber. Shot on the turntable surface is pushed by a scraper mechanism mounted beneath the turntable into a bottom screw conveyor, which transports it to the base of the elevator; a belt elevator assembly then lifts the shot to a top-mounted separator, which utilizes airflow from the dust collector to sort and classify the reclaimed shot.The purpose is to separate broken steel shot and dust generated during the shot blasting process. Through the separator, usable steel shot is directed into the storage hopper above the blast wheel for reuse, while broken shot is separated out and discharged into the waste bin via a bypass pipe.

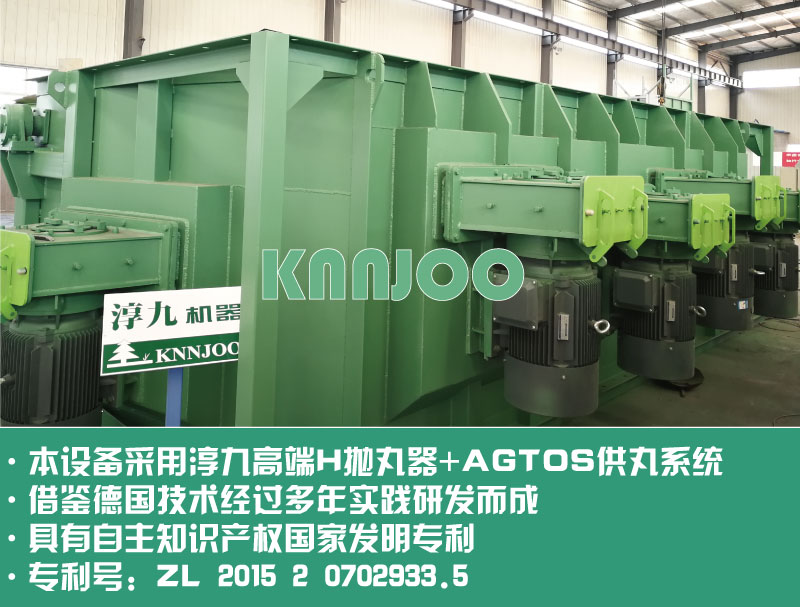

This machine is equipped with the HAI Ocean Surge® direct-coupled high-efficiency blast wheel (German design with independent patents).
The blast wheel is the heart of a shot blasting machine, and its design determines the performance of the entire system. The HAI Pengpai® blast wheel comes as standard equipment, delivering superior blasting performance. Available in a variety of sizes and materials, the H-series blast wheel ensures flexibility across diverse manufacturing processes. Its key advantages include enhanced blasting performance, reduced abrasive consumption, significantly extended equipment uptime, and effective noise reduction.The casing is lined with curved, multi-layer labyrinth-style sealing plates; the hot zone features a thickness of 70mm, ensuring excellent sealing performance and a uniform distribution of the projected abrasive media over an expanded coverage area. The internal design allows for the adjustment of abrasive trajectories, thereby enhancing blasting efficiency and minimizing self-wear. Additionally, a specialized dynamic design boosts efficiency by 30% compared to standard blast wheels.
Selected Cases of KEEJOO Roller Conveyor Steel Shot Blasting Machine
245 sets of section steel shot blasting machines manufactured for Hangxiao Steel Structure Company
16 sets of section steel shot blasting machines manufactured for Hangzhou Southeast Grid
Shanghai Guandar steel profiled steel roller conveyor shot blasting machine 2 sets
9 sets of section steel shot blasting machines manufactured for China Construction Steel Structure Tianjin Company
8 sets of through-type shot blasting machines manufactured for Shanghai Baoye Steel Structure
So far, the performance of more than 600 set-type steel pass-through shot blasting machines at home and abroad is far ahead.
......
A large listed domestic agricultural equipment group phased out its outdated shot blasting machines in the past two years and fully adopted hook-type shot blasting machines independently developed and manufactured by Qingdao KEEJOO Group. Up to now, the group has purchased a total of 58 units.........
The various shot blasting machines manufactured by Qingdao KEEJOO Group for European clients are highly acclaimed and well-received.!
Introduction to the Components of the Shot Blasting Machine

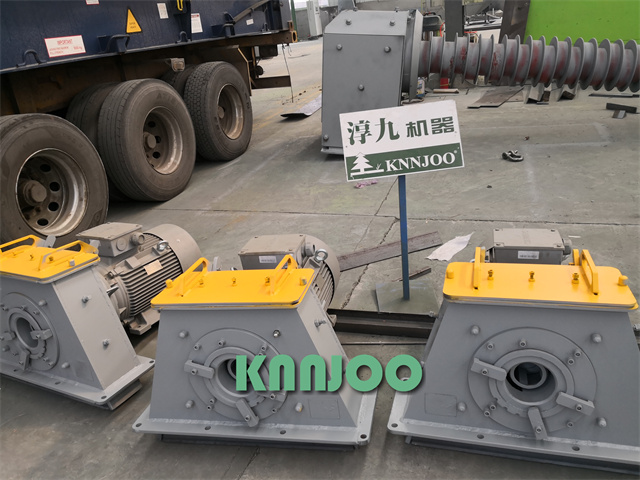

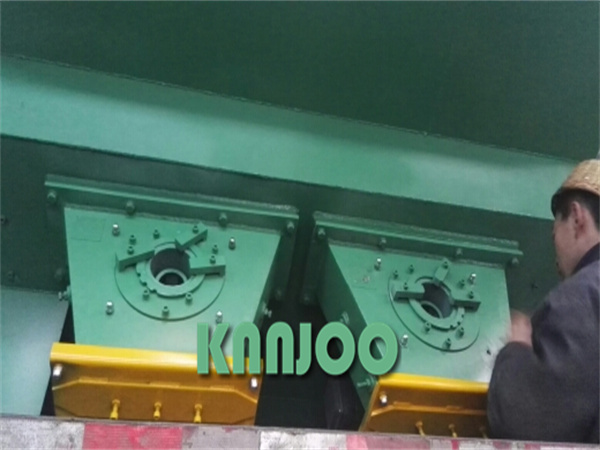

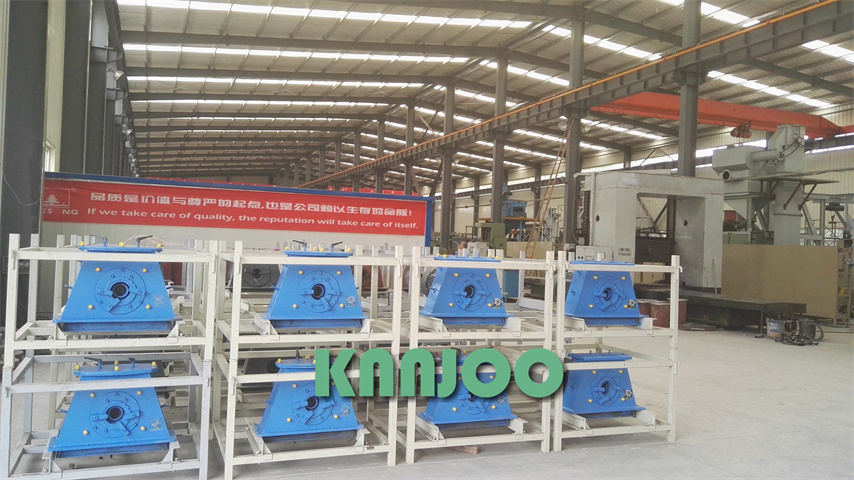

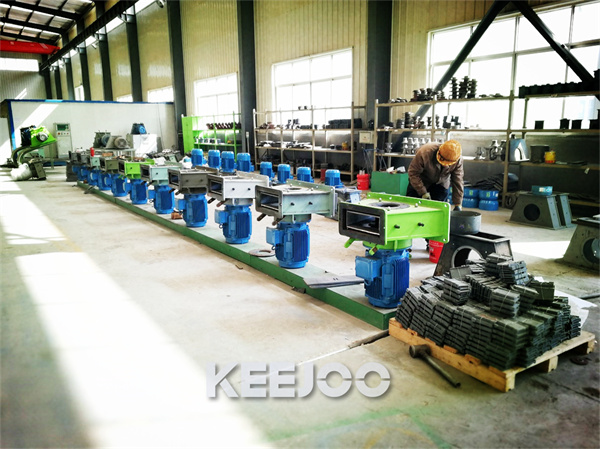

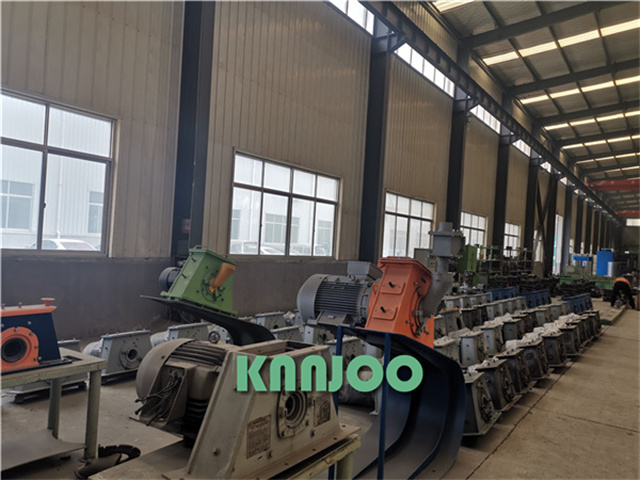

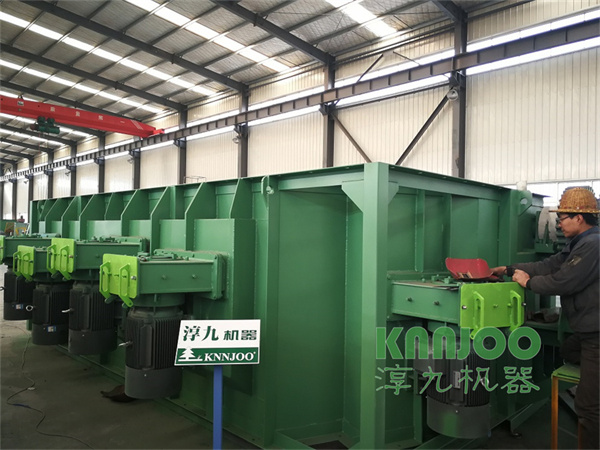

1Blast wheel
1. The blast wheel and motor adopt Germany-joint developed high-efficiency HP technology. Compared with conventional old-style blast wheels, this design eliminates multiple friction loss links, lifting motor efficiency by 20%, cutting down fault points and slashing maintenance costs by 50%.
2. features a more compact footprint than traditional blast wheels, supports arbitrary installation angle arrangement, and enables far easier inspection and maintenance.
3. Constant blasting performance is maintained throughout operation, free from inconsistent and fluctuating cleaning quality seen on conventional units.
4. Blades and all wear-resistant consumables are manufactured in Taiwan via high-chromium investment precision casting, delivering outstanding abrasion resistance. Their service life ranges from 1,200 to 4,000 hours, 3–4 times longer than ordinary casting materials.
5. Blast wheel impeller: Treated with carburizing wear-resistant alloy. The impeller hub is one-time finished by high-precision CNC machining centers for ultra-high dimensional accuracy, ensuring perfect dynamic balance during high-speed rotation, low vibration, low noise and extended service life.
6. Equipped with SKF bearings imported from Sweden.
7. Fitted with genuine Siemens motors.
8. German Schenck dynamic balancing tester is applied to guarantee precise high-speed dynamic balance of impeller hubs.
2Flow control valve
1. Semi-automatic flow control system for regulating the flow of abrasive media into the blast wheel, featuring manual adjustment of the steel shot flow rate.
2. Fully sealed structural design, featuring a lockable inspection opening and equipped with two bearings.
3. A manual shut-off valve is installed above each flow valve; this can be closed to stop the flow of media from the hopper, thereby facilitating maintenance of the flow valve.
3Blasting chamber
1. The shot blasting chamber is constructed from welded manganese steel.
2. Manganese steel protective plates are installed in the "hot zone" of the chamber—specifically covering three-quarters of the area directly exposed to the blast stream—to prevent steel shot from striking the chamber's outer walls; these plates are suspended for easy installation, removal, and replacement.
3. A three-layer sealing structure is installed at the top to prevent steel shot from leaking out during the blasting process.
4Variable-frequency automatic speed-regulating conveyor system (comprising an infeed roller conveyor, a shot-blasting zone roller conveyor, and an outfeed roller conveyor with automatic speed regulation)
Roller conveyor pass-through type:1. The workpiece conveying system for the entire production line utilizes stepless variable-frequency speed control and consists of an input roller conveyor, a shot-blasting chamber roller conveyor, and an output roller conveyor.
2. The rollers for both the input and output roller tables are manufactured by welding heat-treated shaft ends to high-quality carbon steel seamless pipes, followed by integral machining on a lathe. Machining is performed after welding to ensure both a load-bearing capacity of 0.5 t/m and precise coaxiality.
3. The rollers within the shot blasting chamber that are subjected to the impact of the shot are all fitted with easily replaceable, wear-resistant sleeves made of special high-chromium-molybdenum iron.
4. The roller pitch is 600–800 mm, and the entire line utilizes variable-frequency speed control, enabling both high-speed and low-speed workpiece transport.
Wire mesh-belt conveyor type:
1. The system comprises dozens of transmission components, including carbon steel rollers, sprockets and chains, mesh belts, and bearings. The roller conveyor is divided into three sections: the infeed section, the shot-blasting section, and the discharge section. The rollers are constructed by precision-welding quenched-and-tempered end caps to high-quality seamless carbon steel pipes; their profiles and mounting dimensions are machined after welding to ensure compliance with load-bearing and coaxiality requirements.
2. The roller conveyors inside the blast chamber are equipped with easily replaceable wear-resistant medium-chromium cast iron sleeves. Labyrinth seals made of wear-resistant manganese steel are used at both ends of the roller shafts, completely preventing abrasive media from wearing down the bearings.
3. Utilizes imported HD wear-resistant manganese steel that has undergone solution and tempering treatments to eliminate internal residual stresses, moderately reduce the hardness of the manganese steel wire, and enhance its toughness and ductility.
4. A geared drive motor is installed on the right side of the conveyor belt and directly coupled to the drive roller, propelling both the belt and the workpieces; variable frequency speed control is employed, providing a conveying speed of 0.5–4 m/min.
5. A roller is installed under the driving shaft to serve as a guide and tensioner. When the steel mesh belt is loose, it can be tightened through this mechanism.
5Light curtain sensing system, automatic loading system/automatic unloading system
1. Two sets of light curtain sensing units are installed at the infeed and outfeed openings, respectively; the light curtain resolution can be selected based on workpiece size, and the units are used in pairs.
2. When a workpiece enters the shot blasting chamber, a light curtain at the inlet detects its presence, triggering a delayed start of the blast wheels. A light curtain sensor is also installed at the outlet; when the inlet and outlet sensors detect that no workpieces are passing through, the flow valve closes automatically and immediately to prevent "air blasting" (blasting without a workpiece present).
6Sorting system
1. A mesh screen separator is connected to the elevator and positioned above the magnetic separator; fine material passes through the screen into the magnetic separator, while coarse material and impurities are conveyed by a spiral mechanism along the screen to the discharge port at the rear.
2. It is designed to finely separate usable shot, broken shot, and dust, ensuring the uniformity of the shot media.
3.Featuring a welded structure, the interior contains multiple carefully designed compartments for airflow guidance. An access door on the front allows for routine inspection and maintenance; this door is equipped with an air inlet to provide the necessary airflow for dust separation.
4. An adjustable multi-vane baffle structure is used to regulate the uniformity of the falling abrasive curtain.
5. Stationary magnets installed at both the top and bottom enable the fine separation of usable shot from broken steel shot, ensuring the consistency of the blast media.
6. A storage hopper is connected at the bottom; after separation, the usable shot flows into the hopper for storage and subsequent reuse.

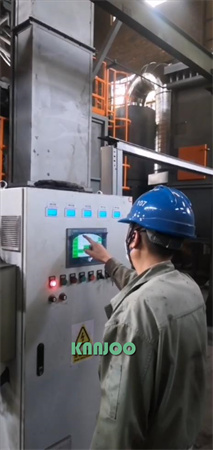

7Electrical control cabinet
1. Siemens PLC and touch screen
2. Siemens variable frequency drive (VFD) for speed control
3. Schneider low-voltage electrical components
4. Shot blasting time controller
5. AirTAC pneumatic components
6. Ammeter for flow monitoring
7. 1 lighting fixture
8. Dedicated constant-temperature air conditioning unit (optional)

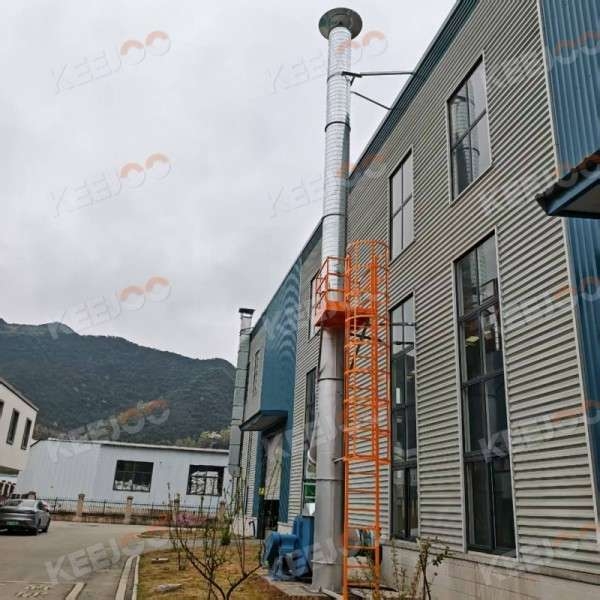

8Dust collector
Pulse-jet cleaning system
Precision filter cartridge filtration system
High-efficiency three-stage dust removal
Optimized and upgraded Donaldson (USA) dust removal technology system
Standard configuration： |
| 1 | Electrical cabinet: This model comes standard with a cooling fan; air conditioning is available as an option. |
| 2 | Programmable Logic Controller (PLC): Siemens (other brands available as options upon customer request) |
| 3 | Touchscreen: Siemens (other brands available as options upon customer request) |
| 4 | Variable Frequency Drive (VFD): Inovance (China) — (Specific brands can be designated upon customer request; we recommend our domestic brand, as its quality is on par with or superior to Siemens.) |
| 5 | Power supply voltage: AC 380V, three-phase five-wire system |
| 6 | Low-voltage electrical components: Schneider (other brands available upon customer request) |
| 7 | Pneumatic components: ARITAC series (other brands available upon customer request) |
| 8 | Wires and cables |
| 9 | Qingdao KEEJOO Group can also customize various non-standard shot blasting machines according to your requirements.
|
